SKU: NKI12/16-EU

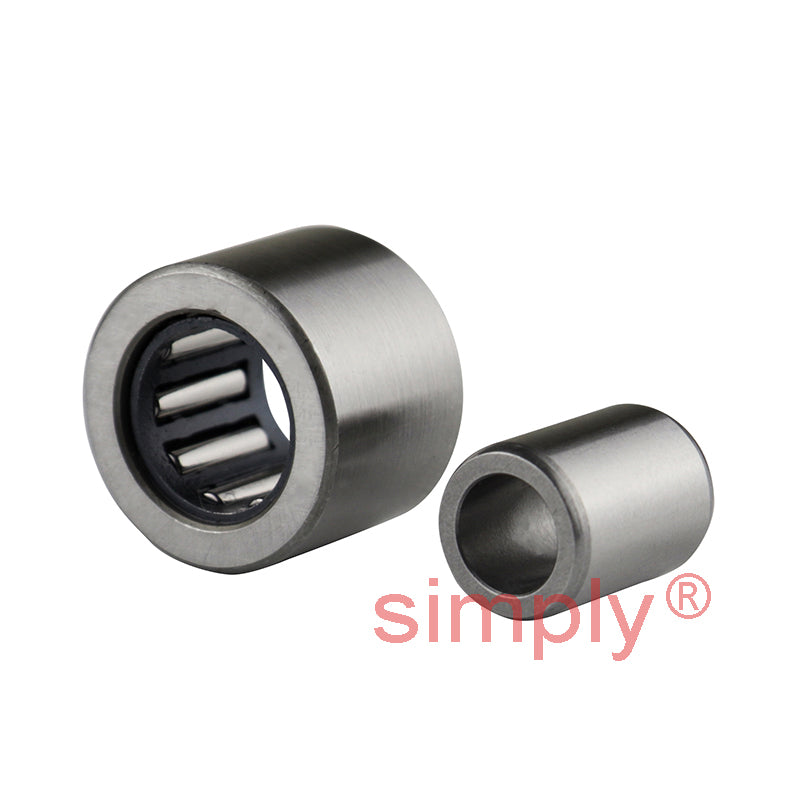

NKI12/16 Budget Needle Roller Bearing / Shaft Sleeve 12x24x16mm
NKI12/16 Budget Needle Roller Bearing / Shaft Sleeve 12x24x16mm
Regular price
Rs. 1,524.70
Regular price
Sale price
Rs. 1,524.70
Taxes included.
In stock
Price Break
10+
Rs. 1,356.98
19+
Rs. 1,280.75
29+
Rs. 1,265.50
39+
Rs. 1,250.25
49+
Rs. 1,235.01
74+
Rs. 1,219.76
99+
Rs. 1,143.53
199+
Rs. 1,128.28
249+
Rs. 1,113.03
499+
Rs. 1,097.78
999+
Rs. 1,067.29
Description
Description
|
Budget Needle Roller Bearing and Shaft Sleeve: A machined needle roller bearing with retaining flanges in the outer ring to retain the rollers, comes supplied with a shaft sleeve. Benefits: Ease of mounting, inner ring supplied, larger bearings have annular lubrication groove |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 12mm
- Outside Diameter:
- 24mm
- Width:
- 16mm
Technical
Technical
| d | 12mm |
|---|---|
| D | 24mm |
| B | 16mm |
| Dynamic load C | 11700 N |
| Static load Co | 15300 N |
| Fatigue load limit Pu | 1860 N |
| Speed in grease | 16000 rpm |
| Speed in oil | 24000 rpm |
| F | 16mm |
| r1r2 | 0.3mm |
| S (axial disp) | 0.5mm |
| da min | 14mm |
| Da max | 22mm |
| ra max | 0.3mm |
