SKU: NKI100/30-EU

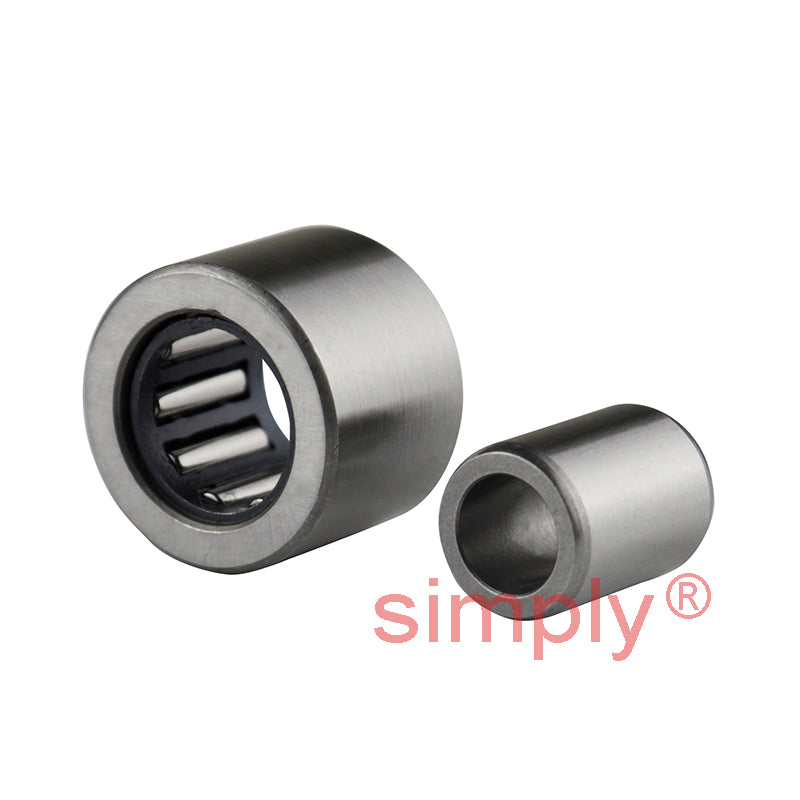

NKI100/30 Budget Needle Roller Bearing / Shaft Sleeve 100x130x30mm
NKI100/30 Budget Needle Roller Bearing / Shaft Sleeve 100x130x30mm
Regular price
Rs. 20,918.27
Regular price
Sale price
Rs. 20,918.27
Taxes included.
In stock
Price Break
10+
Rs. 18,617.26
19+
Rs. 17,571.35
29+
Rs. 17,362.16
39+
Rs. 17,152.98
49+
Rs. 16,943.80
74+
Rs. 16,734.62
99+
Rs. 15,688.70
199+
Rs. 15,479.52
249+
Rs. 15,270.34
499+
Rs. 15,061.15
999+
Rs. 14,642.79
Description
Description
|
Budget Needle Roller Bearing and Shaft Sleeve: A machined needle roller bearing with retaining flanges in the outer ring to retain the rollers, comes supplied with a shaft sleeve. Benefits: Ease of mounting, inner ring supplied, larger bearings have annular lubrication groove |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 100mm
- Outside Diameter:
- 130mm
- Width:
- 30mm
Technical
Technical
| d | 100mm |
|---|---|
| D | 130mm |
| B | 30mm |
| Dynamic load C | 96800 N |
| Static load Co | 220000 N |
| Fatigue load limit Pu | 27500 N |
| Speed in grease | 2400 rpm |
| Speed in oil | 3600 rpm |
| F | 110mm |
| r1r2 | 1.1mm |
| S (axial disp) | 1.5mm |
| da min | 106.5mm |
| Da max | 123.5mm |
| ra max | 1mm |
