SKU: NKI10/20-EU

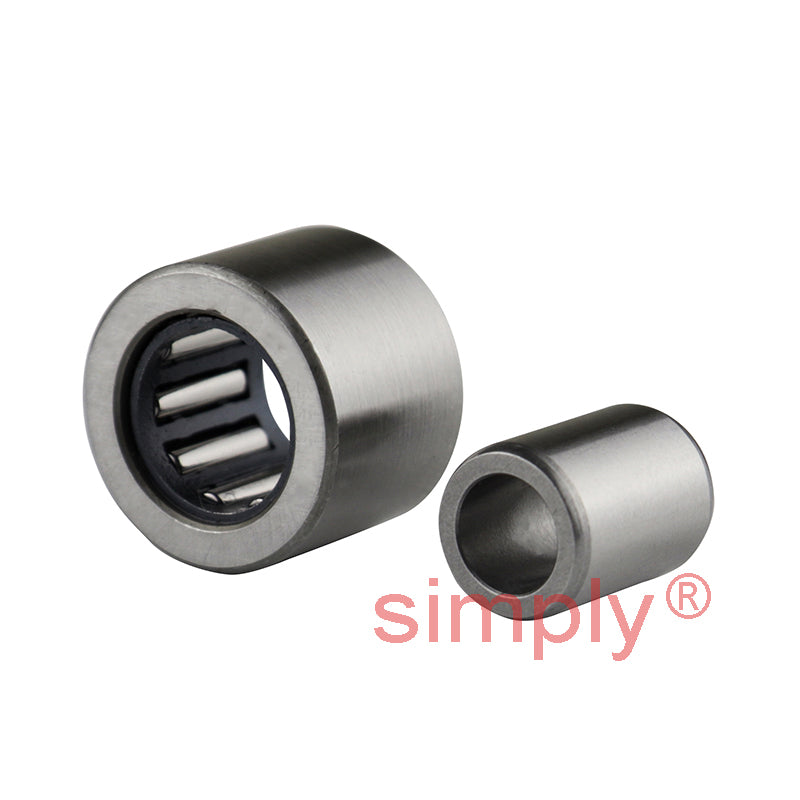

NKI10/20 Budget Needle Roller Bearing / Shaft Sleeve 10x22x20mm
NKI10/20 Budget Needle Roller Bearing / Shaft Sleeve 10x22x20mm
Regular price
Rs. 1,661.68
Regular price
Sale price
Rs. 1,661.68
Taxes included.
In stock
Price Break
10+
Rs. 1,478.90
19+
Rs. 1,395.81
29+
Rs. 1,379.19
39+
Rs. 1,362.58
49+
Rs. 1,345.96
74+
Rs. 1,329.34
99+
Rs. 1,246.26
199+
Rs. 1,229.64
249+
Rs. 1,213.03
499+
Rs. 1,196.41
999+
Rs. 1,163.18
Description
Description
|
Budget Needle Roller Bearing and Shaft Sleeve: A machined needle roller bearing with retaining flanges in the outer ring to retain the rollers, comes supplied with a shaft sleeve. Benefits: Ease of mounting, inner ring supplied, larger bearings have annular lubrication groove |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 10mm
- Outside Diameter:
- 22mm
- Width:
- 20mm
Technical
Technical
| d | 10mm |
|---|---|
| D | 22mm |
| B | 20mm |
| Dynamic load C | 12800 N |
| Static load Co | 16600 N |
| Fatigue load limit Pu | 2080 N |
| Speed in grease | 17000 rpm |
| Speed in oil | 26000 rpm |
| F | 14mm |
| r1r2 | 0.3mm |
| S (axial disp) | 0.5mm |
| da min | 12mm |
| Da max | 20mm |
| ra max | 0.3mm |
