SKU: NKI10/16-EU

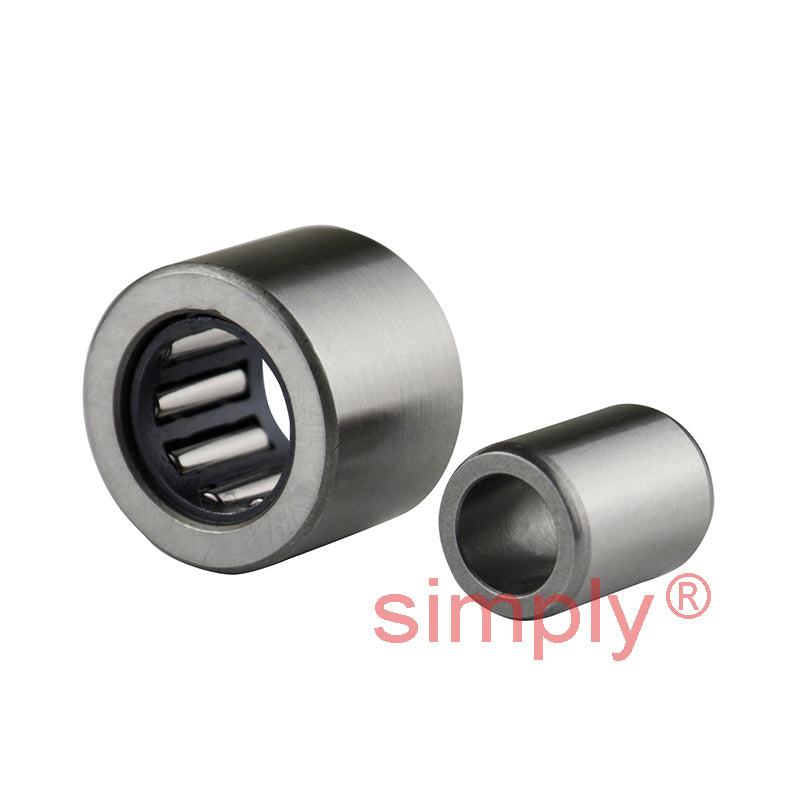

NKI10/16 Budget Needle Roller Bearing / Shaft Sleeve 10x22x16mm
NKI10/16 Budget Needle Roller Bearing / Shaft Sleeve 10x22x16mm
Regular price
Rs. 1,436.96
ex VAT
Regular price
Sale price
Rs. 1,436.96
ex VAT
In stock
Price Break
10+
Rs. 1,278.89
19+
Rs. 1,207.05
29+
Rs. 1,192.68
39+
Rs. 1,178.31
49+
Rs. 1,163.94
74+
Rs. 1,149.57
99+
Rs. 1,077.72
199+
Rs. 1,063.35
249+
Rs. 1,048.98
499+
Rs. 1,034.61
999+
Rs. 1,005.87
Couldn't load pickup availability
Description
Description
|
Budget Needle Roller Bearing and Shaft Sleeve: A machined needle roller bearing with retaining flanges in the outer ring to retain the rollers, comes supplied with a shaft sleeve. Benefits: Ease of mounting, inner ring supplied, larger bearings have annular lubrication groove |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 10mm
- Outside Diameter:
- 22mm
- Width:
- 16mm
Technical
Technical
| d | 10mm |
|---|---|
| D | 22mm |
| B | 16mm |
| Dynamic load C | 10200 N |
| Static load Co | 12500 N |
| Fatigue load limit Pu | 1530 N |
| Speed in grease | 17000 rpm |
| Speed in oil | 26000 rpm |
| F | 14mm |
| r1r2 | 0.3mm |
| S (axial disp) | 0.5mm |
| da min | 12mm |
| Da max | 20mm |
| ra max | 0.3mm |
