SKU: NK9/16TN-EU

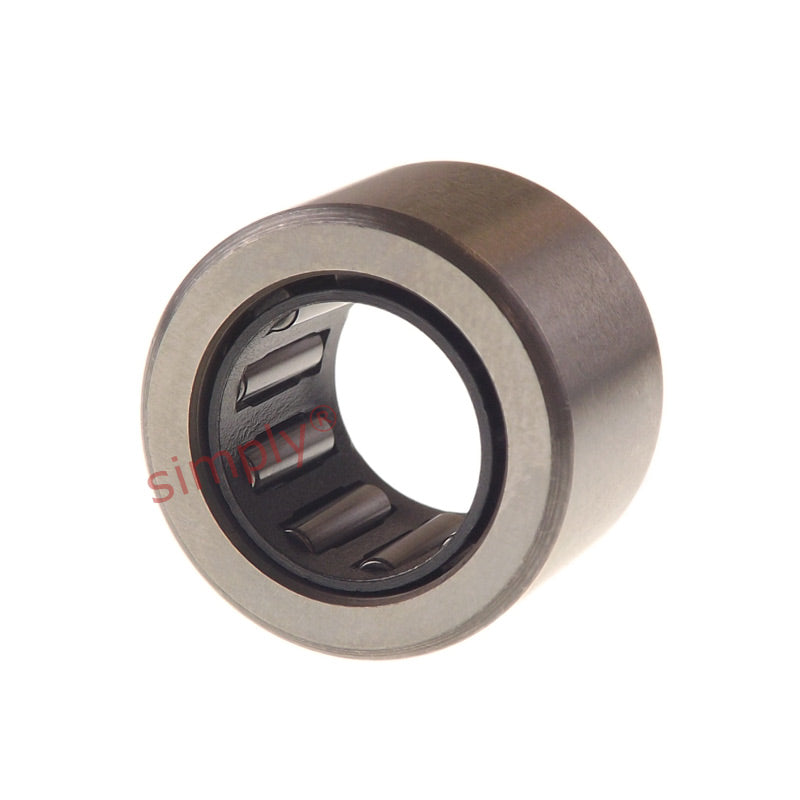

NK9/16TN Budget Needle Roller Bearing with Flanges no Shaft Sleeve 9x16x16mm
NK9/16TN Budget Needle Roller Bearing with Flanges no Shaft Sleeve 9x16x16mm
Regular price
Rs. 937.10
Regular price
Sale price
Rs. 937.10
Taxes included.
In stock
Price Break
10+
Rs. 834.02
19+
Rs. 787.16
29+
Rs. 777.79
39+
Rs. 768.42
49+
Rs. 759.05
74+
Rs. 749.68
99+
Rs. 702.83
199+
Rs. 693.45
249+
Rs. 684.08
499+
Rs. 674.71
999+
Rs. 655.97
Description
Description
|
Budget Machined Type Needle Roller with Flanges: Supplied without the inner ring for instances where a mating bearing surface already exists or an inner ring is to be used & has the benefit of flanges in the outer race to compensate for small misalignments and small side loads. Benefits: Economical replacement, needles are retained within machined flange of the outer race. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 9mm
- Outside Diameter:
- 16mm
- Width:
- 16mm
Technical
Technical
| Fw | 9mm |
|---|---|
| D | 16mm |
| C | 16mm |
| Dynamic load C | 5720 N |
| Static load Co | 7200 N |
| Fatigue load limit Pu | 815 N |
| Speed in grease | 24000 rpm |
| Speed in oil | 36000 rpm |
| r1r2 | 0.3mm |
| Da max | 14mm |
| ra max | 0.3mm |
| Seal | G9x16x3 |
| Weight | 13 g |
