SKU: NK7/12TN-MB

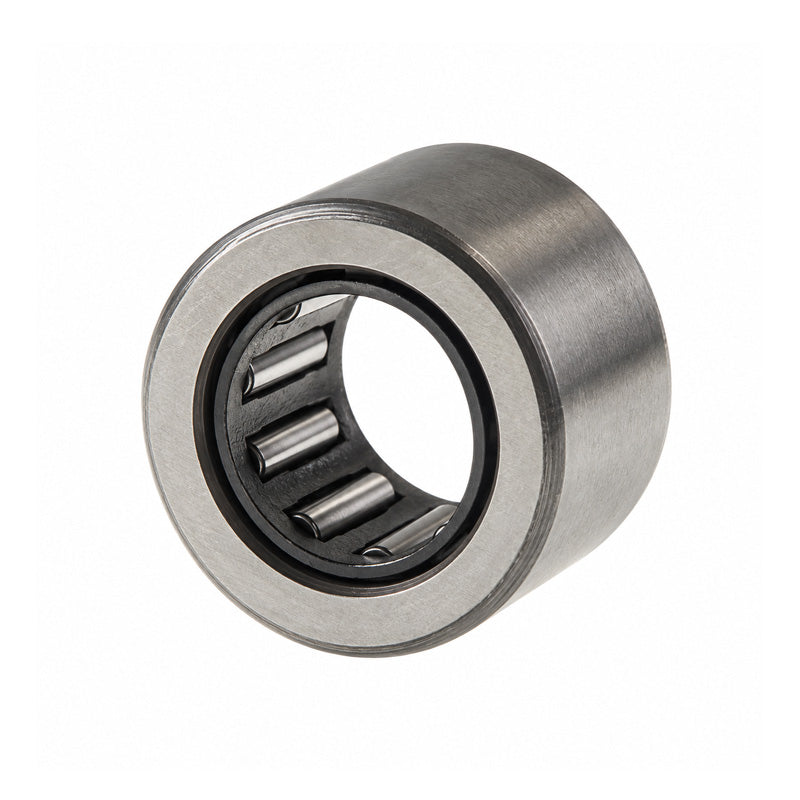

Major Brand NK7/12TN Needle Roller Bearing With Flanges without Shaft Sleeve 7x14x12mm
Major Brand NK7/12TN Needle Roller Bearing With Flanges without Shaft Sleeve 7x14x12mm
Regular price
Rs. 1,523.46
ex VAT
Regular price
Sale price
Rs. 1,523.46
ex VAT
In stock
Price Break
10+
Rs. 1,355.88
19+
Rs. 1,279.71
29+
Rs. 1,264.47
39+
Rs. 1,249.24
49+
Rs. 1,234.00
74+
Rs. 1,218.77
99+
Rs. 1,142.60
199+
Rs. 1,127.36
249+
Rs. 1,112.13
499+
Rs. 1,096.89
999+
Rs. 1,066.42
Couldn't load pickup availability
Description
Description
|
Machined Type Needle Roller with Flanges: Supplied without the inner ring for instances where a mating bearing surface already exists or an inner ring is to be used & has the benefit of flanges in the outer race to compensate for small misalignments and small side loads. Benefits: Economical replacement, needles are retained within machined flange of the outer race. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 7mm
- Outside Diameter:
- 14mm
- Width:
- 12mm
Technical
Technical
| Fw | 7mm |
|---|---|
| D | 14mm |
| C | 12mm |
| Dynamic load | 3580 N |
| Static load | 3750 N |
| Fatigue load limit Pu | 415 N |
| Speed in grease | 30000 rpm |
| Speed in oil | 43000 rpm |
| r1r2 | 0.3mm |
| Da max | 12mm |
| ra max | 0.3mm |
| Seal | G7x14x2 |
| Weight | 8.2 g |
