SKU: NK60/25-EU

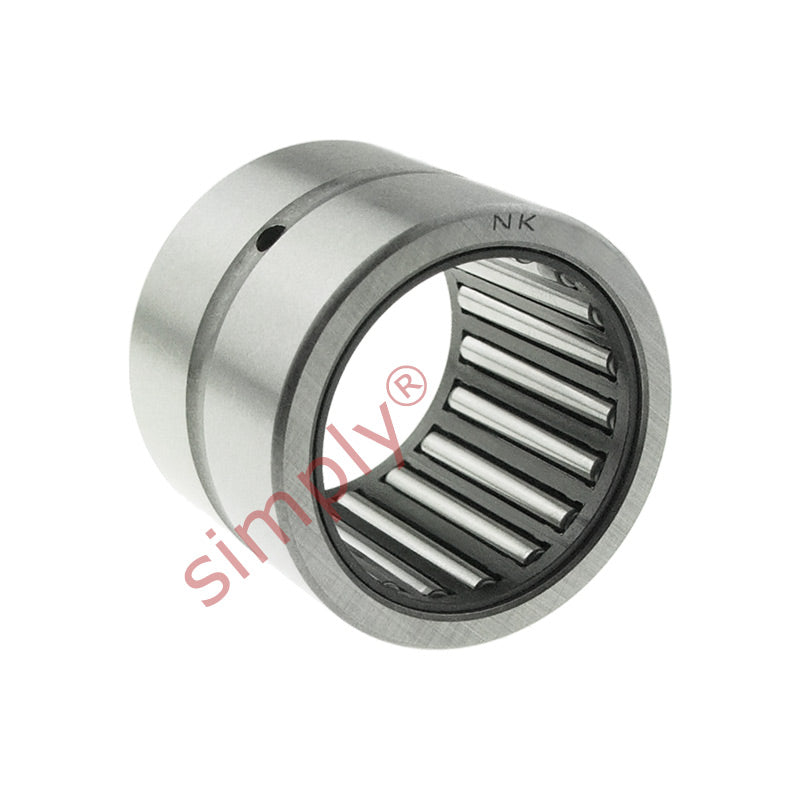

NK60/25 Budget Needle Roller Bearing with Flanges no Shaft Sleeve 60x72x25mm
NK60/25 Budget Needle Roller Bearing with Flanges no Shaft Sleeve 60x72x25mm
Regular price
Rs. 3,674.14
Regular price
Sale price
Rs. 3,674.14
Taxes included.
In stock
Price Break
10+
Rs. 3,269.98
19+
Rs. 3,086.28
29+
Rs. 3,049.54
39+
Rs. 3,012.79
49+
Rs. 2,976.05
74+
Rs. 2,939.31
99+
Rs. 2,755.61
199+
Rs. 2,718.86
249+
Rs. 2,682.12
499+
Rs. 2,645.38
999+
Rs. 2,571.90
Description
Description
|
Budget Machined Type Needle Roller with Flanges: Supplied without the inner ring for instances where a mating bearing surface already exists or an inner ring is to be used & has the benefit of flanges in the outer race to compensate for small misalignments and small side loads. Benefits: Economical replacement, needles are retained within machined flange of the outer race. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 60mm
- Outside Diameter:
- 72mm
- Width:
- 25mm
Technical
Technical
| Fw | 60mm |
|---|---|
| D | 72mm |
| C | 25mm |
| Dynamic load C | 41800 N |
| Static load Co | 96500 N |
| Fatigue load limit Pu | 12200 N |
| Speed in grease | 4800 rpm |
| Speed in oil | 6700 rpm |
| r1r2 | 0.6mm |
| Da max | 68mm |
| ra max | 0.6mm |
| Weight | 190 g |
