SKU: NK6/12TN-EU

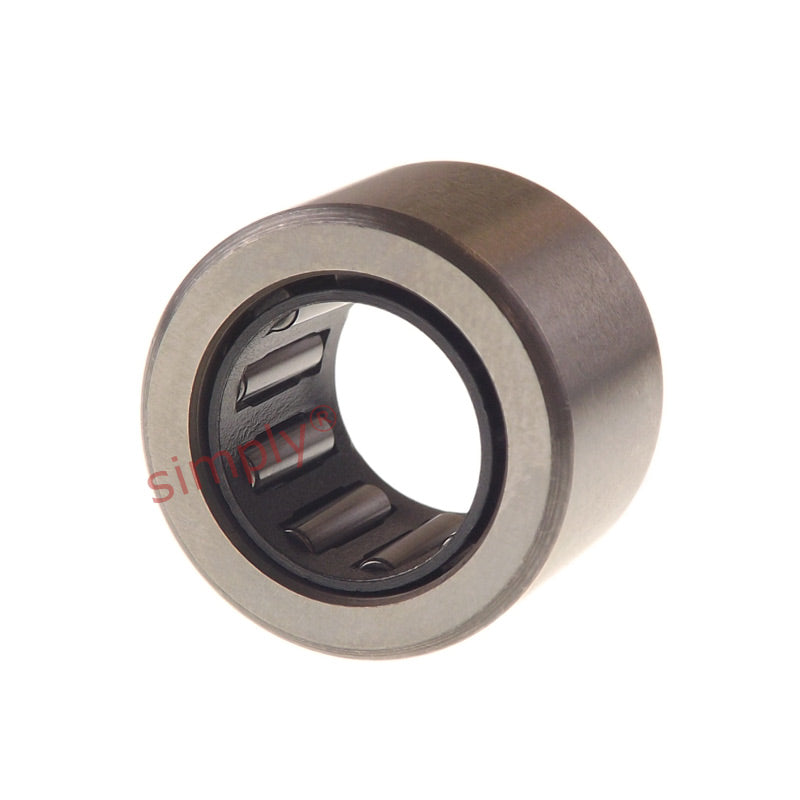

NK6/12TN Budget Needle Roller Bearing with Flanges no Shaft Sleeve 6x12x12mm
NK6/12TN Budget Needle Roller Bearing with Flanges no Shaft Sleeve 6x12x12mm
Regular price
Rs. 861.57
Regular price
Sale price
Rs. 861.57
Taxes included.
In stock
Price Break
10+
Rs. 766.80
19+
Rs. 723.72
29+
Rs. 715.10
39+
Rs. 706.49
49+
Rs. 697.87
74+
Rs. 689.26
99+
Rs. 646.18
199+
Rs. 637.56
249+
Rs. 628.95
499+
Rs. 620.33
999+
Rs. 603.10
Description
Description
|
Budget Machined Type Needle Roller with Flanges: Supplied without the inner ring for instances where a mating bearing surface already exists or an inner ring is to be used & has the benefit of flanges in the outer race to compensate for small misalignments and small side loads. Benefits: Economical replacement, needles are retained within machined flange of the outer race. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 6mm
- Outside Diameter:
- 12mm
- Width:
- 12mm
Technical
Technical
| Fw | 6mm |
|---|---|
| D | 12mm |
| C | 12mm |
| Dynamic load C | 3300 N |
| Static load Co | 3200 N |
| Fatigue load limit Pu | 345 N |
| Speed in grease | 32000 rpm |
| Speed in oil | 45000 rpm |
| r1r2 | 0.15mm |
| Da max | 10.8mm |
| ra max | 0.1mm |
| Seal | G6x12x2 |
| Weight | 5.7 g |
