SKU: NK5/12TN-MB

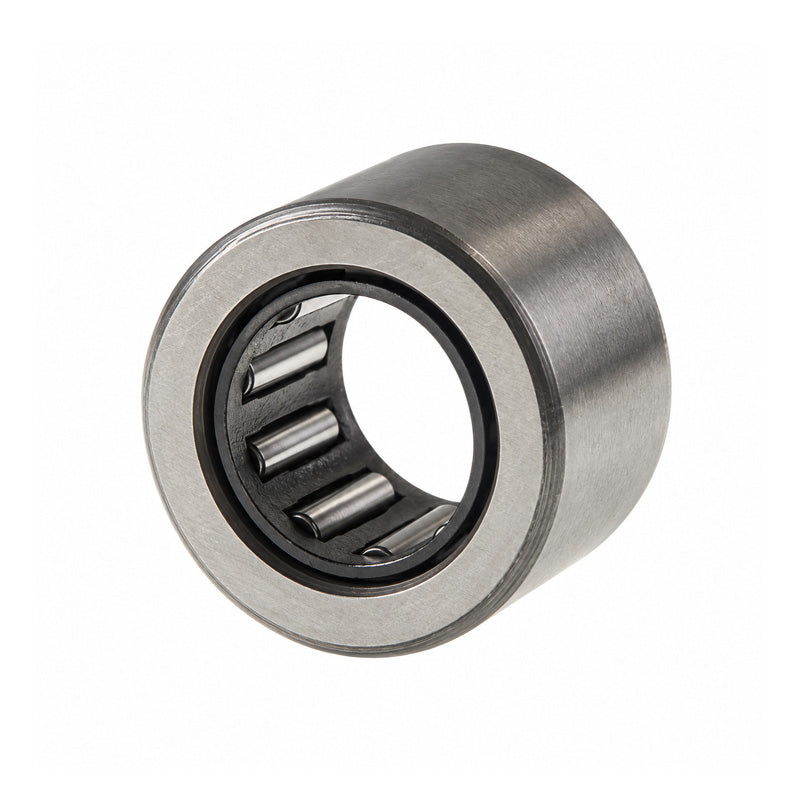

Major Brand NK5/12TN Needle Roller Bearing With Flanges without Shaft Sleeve 5x10x12mm
Major Brand NK5/12TN Needle Roller Bearing With Flanges without Shaft Sleeve 5x10x12mm
Regular price
Rs. 1,034.64
ex VAT
Regular price
Sale price
Rs. 1,034.64
ex VAT
In stock
Price Break
10+
Rs. 920.83
19+
Rs. 869.10
29+
Rs. 858.75
39+
Rs. 848.40
49+
Rs. 838.06
74+
Rs. 827.71
99+
Rs. 775.98
199+
Rs. 765.63
249+
Rs. 755.29
499+
Rs. 744.94
999+
Rs. 724.25
Couldn't load pickup availability
Description
Description
|
Machined Type Needle Roller with Flanges: Supplied without the inner ring for instances where a mating bearing surface already exists or an inner ring is to be used & has the benefit of flanges in the outer race to compensate for small misalignments and small side loads. Benefits: Economical replacement, needles are retained within machined flange of the outer race. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 5mm
- Outside Diameter:
- 10mm
- Width:
- 12mm
Technical
Technical
| Fw | 5mm |
|---|---|
| D | 10mm |
| C | 12mm |
| Dynamic load | 2920 N |
| Static load | 2700 N |
| Fatigue load limit Pu | 290 N |
| Speed in grease | 36000 rpm |
| Speed in oil | 50000 rpm |
| r1r2 | 0.15mm |
| Da max | 8.8mm |
| ra max | 0.1mm |
| Seal | G5x10x2 |
| Weight | 3.7 g |
