SKU: NK47/30-EU

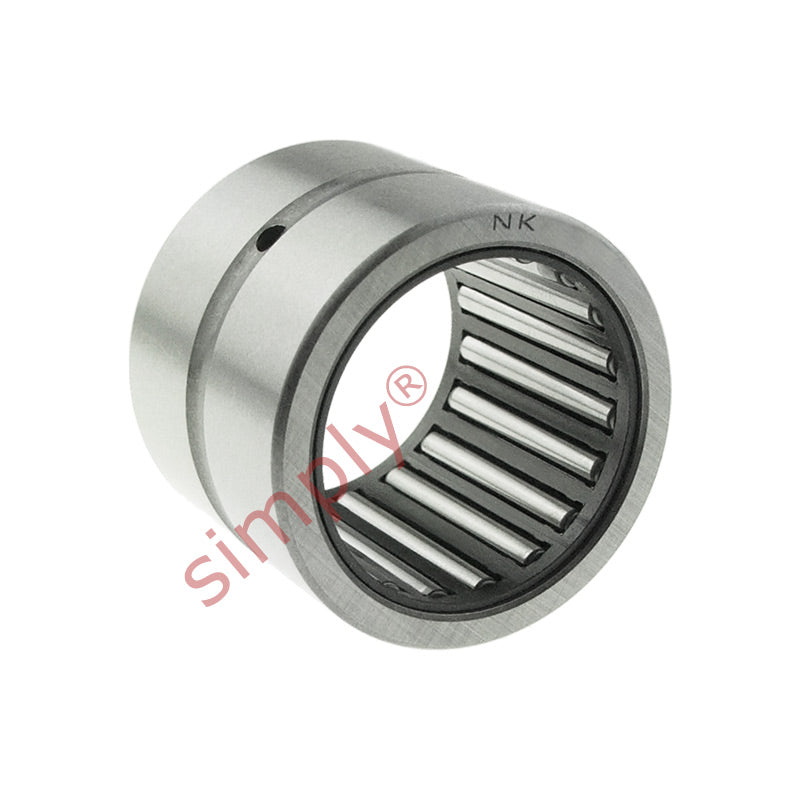

NK47/30 Budget Needle Roller Bearing with Flanges no Shaft Sleeve 47x57x30mm
NK47/30 Budget Needle Roller Bearing with Flanges no Shaft Sleeve 47x57x30mm
Regular price
Rs. 858.34
ex VAT
Regular price
Sale price
Rs. 858.34
ex VAT
In stock
Price Break
10+
Rs. 763.92
19+
Rs. 721.01
29+
Rs. 712.42
39+
Rs. 703.84
49+
Rs. 695.26
74+
Rs. 686.67
99+
Rs. 643.76
199+
Rs. 635.17
249+
Rs. 626.59
499+
Rs. 618.00
999+
Rs. 600.84
Couldn't load pickup availability
Description
Description
|
Budget Machined Type Needle Roller with Flanges: Supplied without the inner ring for instances where a mating bearing surface already exists or an inner ring is to be used & has the benefit of flanges in the outer race to compensate for small misalignments and small side loads. Benefits: Economical replacement, needles are retained within machined flange of the outer race. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 47mm
- Outside Diameter:
- 57mm
- Width:
- 30mm
Technical
Technical
| Fw | 47mm |
|---|---|
| D | 57mm |
| C | 30mm |
| Dynamic load C | 41800 N |
| Static load Co | 98000 N |
| Fatigue load limit Pu | 12900 N |
| Speed in grease | 6000 rpm |
| Speed in oil | 8500 rpm |
| r1r2 | 0.3mm |
| Da max | 55mm |
| ra max | 0.3mm |
| Weight | 140 g |
