SKU: NK43/20-EU

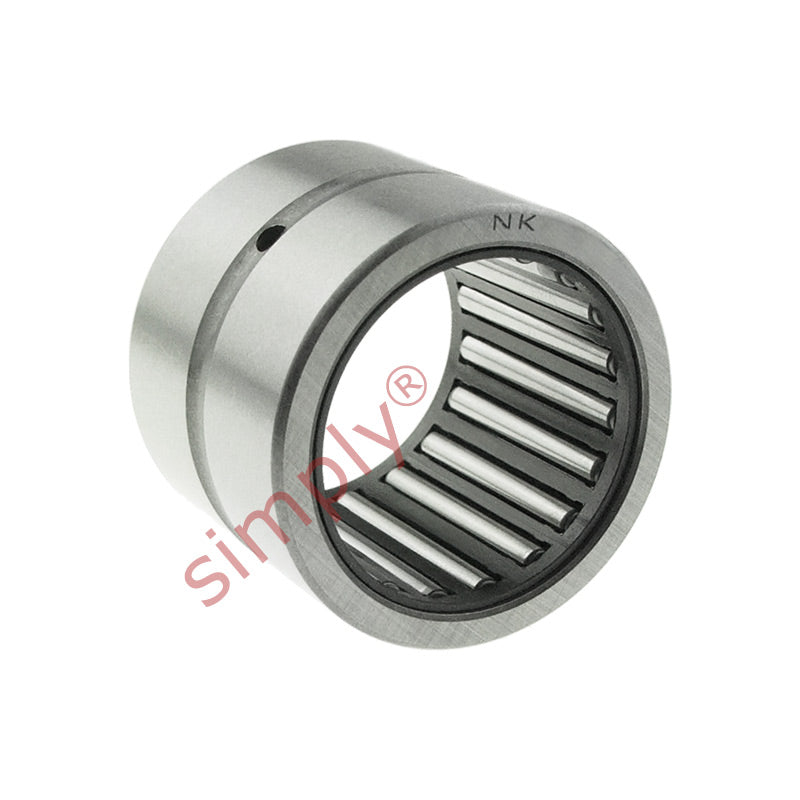

NK43/20 Budget Needle Roller Bearing with Flanges no Shaft Sleeve 43x53x20mm
NK43/20 Budget Needle Roller Bearing with Flanges no Shaft Sleeve 43x53x20mm
Regular price
Rs. 992.15
Regular price
Sale price
Rs. 992.15
Taxes included.
In stock
Price Break
10+
Rs. 883.01
19+
Rs. 833.41
29+
Rs. 823.48
39+
Rs. 813.56
49+
Rs. 803.64
74+
Rs. 793.72
99+
Rs. 744.11
199+
Rs. 734.19
249+
Rs. 724.27
499+
Rs. 714.35
999+
Rs. 694.51
Description
Description
|
Budget Machined Type Needle Roller with Flanges: Supplied without the inner ring for instances where a mating bearing surface already exists or an inner ring is to be used & has the benefit of flanges in the outer race to compensate for small misalignments and small side loads. Benefits: Economical replacement, needles are retained within machined flange of the outer race. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 43mm
- Outside Diameter:
- 53mm
- Width:
- 20mm
Technical
Technical
| Fw | 43mm |
|---|---|
| D | 53mm |
| C | 20mm |
| Dynamic load C | 27500 N |
| Static load Co | 55000 N |
| Fatigue load limit Pu | 6950 N |
| Speed in grease | 6700 rpm |
| Speed in oil | 9500 rpm |
| r1r2 | 0.3mm |
| Da max | 51mm |
| ra max | 0.3mm |
| Seal | G43x53x4 |
| Weight | 86 g |
