SKU: NK42/30-EU

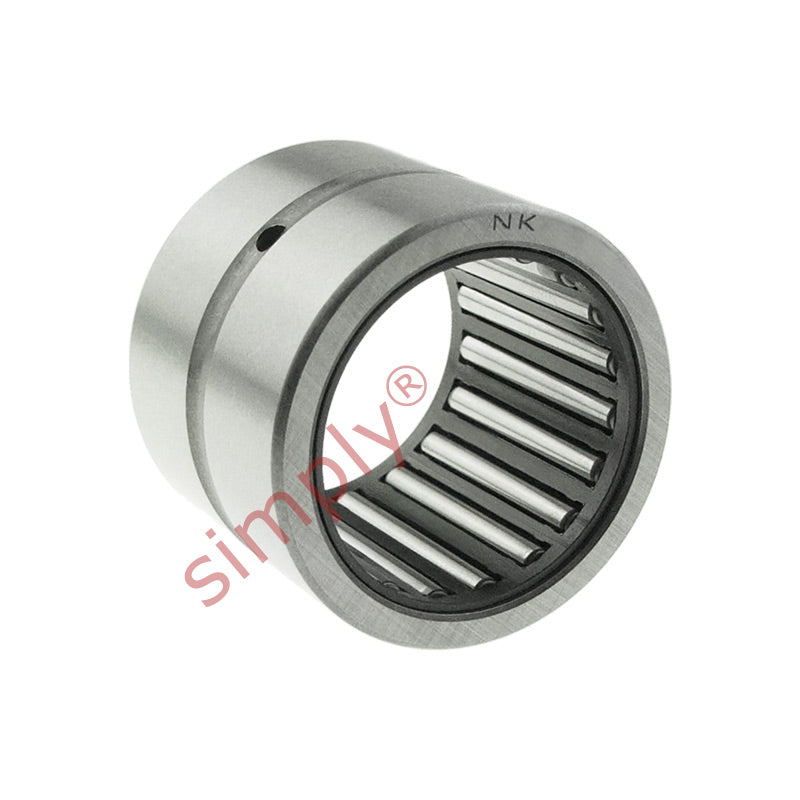

NK42/30 Budget Needle Roller Bearing with Flanges no Shaft Sleeve 42x52x30mm
NK42/30 Budget Needle Roller Bearing with Flanges no Shaft Sleeve 42x52x30mm
Regular price
Rs. 1,081.87
ex VAT
Regular price
Sale price
Rs. 1,081.87
ex VAT
In stock
Price Break
10+
Rs. 962.86
19+
Rs. 908.77
29+
Rs. 897.95
39+
Rs. 887.13
49+
Rs. 876.31
74+
Rs. 865.50
99+
Rs. 811.40
199+
Rs. 800.58
249+
Rs. 789.77
499+
Rs. 778.95
999+
Rs. 757.31
Couldn't load pickup availability
Description
Description
|
Budget Machined Type Needle Roller with Flanges: Supplied without the inner ring for instances where a mating bearing surface already exists or an inner ring is to be used & has the benefit of flanges in the outer race to compensate for small misalignments and small side loads. Benefits: Economical replacement, needles are retained within machined flange of the outer race. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 42mm
- Outside Diameter:
- 52mm
- Width:
- 30mm
Technical
Technical
| Fw | 42mm |
|---|---|
| D | 52mm |
| C | 30mm |
| Dynamic load C | 39100 N |
| Static load Co | 86500 N |
| Fatigue load limit Pu | 11200 N |
| Speed in grease | 6700 rpm |
| Speed in oil | 9500 rpm |
| r1r2 | 0.3mm |
| Da max | 50mm |
| ra max | 0.3mm |
| Seal | G/SD42x52x4 |
| Weight | 130 g |
