SKU: NK24/20-EU

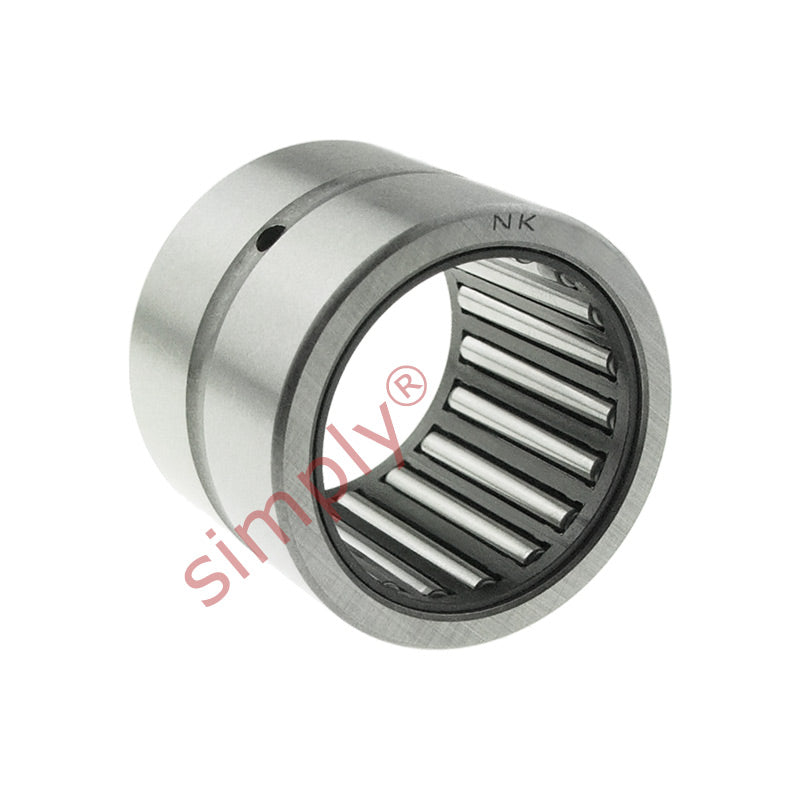

NK24/20 Budget Needle Roller Bearing with Flanges no Shaft Sleeve 24x32x20mm
NK24/20 Budget Needle Roller Bearing with Flanges no Shaft Sleeve 24x32x20mm
Regular price
Rs. 1,566.95
Regular price
Sale price
Rs. 1,566.95
Taxes included.
In stock
Price Break
10+
Rs. 1,394.59
19+
Rs. 1,316.24
29+
Rs. 1,300.57
39+
Rs. 1,284.90
49+
Rs. 1,269.23
74+
Rs. 1,253.56
99+
Rs. 1,175.21
199+
Rs. 1,159.54
249+
Rs. 1,143.87
499+
Rs. 1,128.20
999+
Rs. 1,096.87
Description
Description
|
Budget Machined Type Needle Roller with Flanges: Supplied without the inner ring for instances where a mating bearing surface already exists or an inner ring is to be used & has the benefit of flanges in the outer race to compensate for small misalignments and small side loads. Benefits: Economical replacement, needles are retained within machined flange of the outer race. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 24mm
- Outside Diameter:
- 32mm
- Width:
- 20mm
Technical
Technical
| Fw | 24mm |
|---|---|
| D | 32mm |
| C | 20mm |
| Dynamic load C | 19000 N |
| Static load Co | 32500 N |
| Fatigue load limit Pu | 4050 N |
| Speed in grease | 10000 rpm |
| Speed in oil | 16000 rpm |
| r1r2 | 0.3mm |
| Da max | 30mm |
| ra max | 0.3mm |
| Seal | G/SD24x32x4 |
| Weight | 40 g |
