SKU: NK17/20-MB

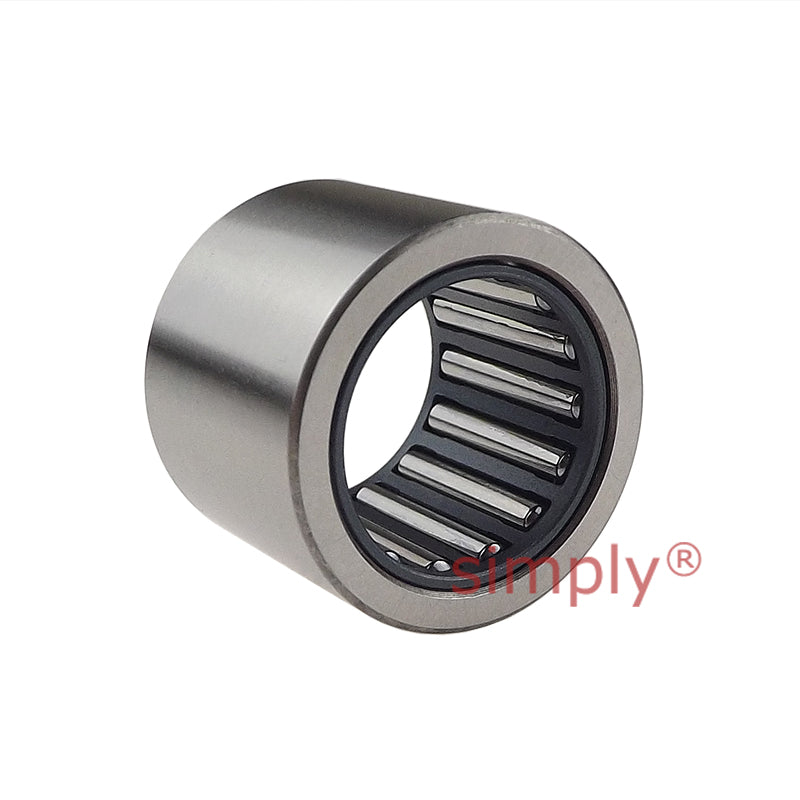

Major Brand NK17/20 Needle Roller Bearing With Flanges without Shaft Sleeve 17x25x20mm
Major Brand NK17/20 Needle Roller Bearing With Flanges without Shaft Sleeve 17x25x20mm
Regular price
Rs. 2,238.97
ex VAT
Regular price
Sale price
Rs. 2,238.97
ex VAT
In stock
Price Break
10+
Rs. 1,992.68
19+
Rs. 1,880.73
29+
Rs. 1,858.35
39+
Rs. 1,835.96
49+
Rs. 1,813.57
74+
Rs. 1,791.18
99+
Rs. 1,679.23
199+
Rs. 1,656.84
249+
Rs. 1,634.45
499+
Rs. 1,612.06
999+
Rs. 1,567.28
Couldn't load pickup availability
Description
Description
|
Machined Type Needle Roller with Flanges: Supplied without the inner ring for instances where a mating bearing surface already exists or an inner ring is to be used & has the benefit of flanges in the outer race to compensate for small misalignments and small side loads. Benefits: Economical replacement, needles are retained within machined flange of the outer race. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 17mm
- Outside Diameter:
- 25mm
- Width:
- 20mm
Technical
Technical
| Fw | 17mm |
|---|---|
| D | 25mm |
| C | 20mm |
| Dynamic load | 15100 N |
| Static load | 22000 N |
| Fatigue load limit Pu | 2750 N |
| Speed in grease | 15000 rpm |
| Speed in oil | 22000 rpm |
| r1r2 | 0.3mm |
| Da max | 23mm |
| ra max | 0.3mm |
| Seal | G/SD17x25x3 |
| Weight | 30 g |
