SKU: NK10/16TN-EU

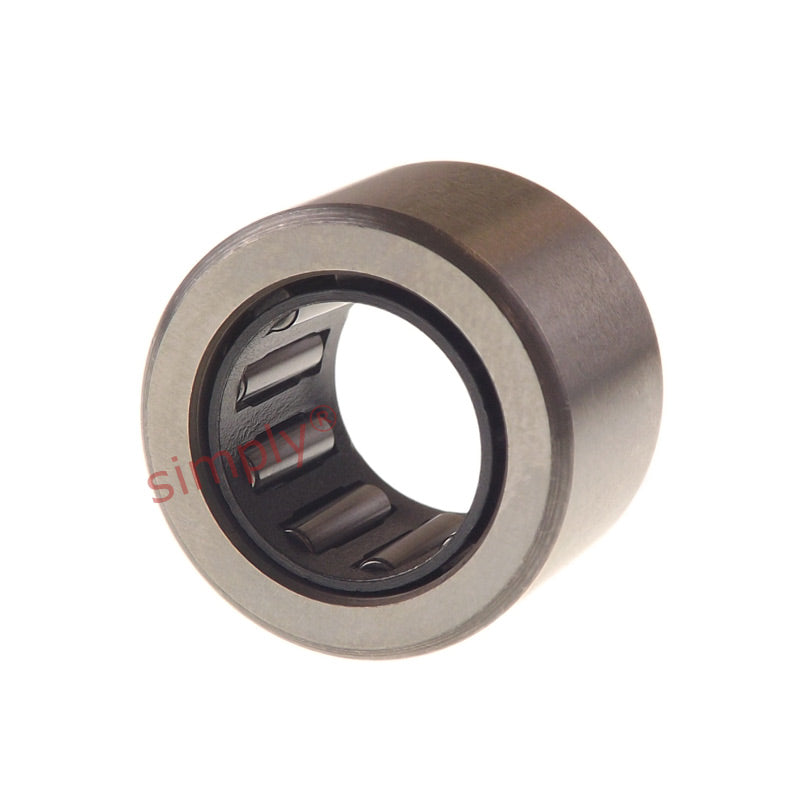

NK10/16TN Budget Needle Roller Bearing with Flanges no Shaft Sleeve 10x17x16mm
NK10/16TN Budget Needle Roller Bearing with Flanges no Shaft Sleeve 10x17x16mm
Regular price
Rs. 1,413.96
ex VAT
Regular price
Sale price
Rs. 1,413.96
ex VAT
In stock
Price Break
10+
Rs. 1,258.42
19+
Rs. 1,187.73
29+
Rs. 1,173.59
39+
Rs. 1,159.45
49+
Rs. 1,145.31
74+
Rs. 1,131.17
99+
Rs. 1,060.47
199+
Rs. 1,046.33
249+
Rs. 1,032.19
499+
Rs. 1,018.05
999+
Rs. 989.77
Couldn't load pickup availability
Description
Description
|
Budget Machined Type Needle Roller with Flanges: Supplied without the inner ring for instances where a mating bearing surface already exists or an inner ring is to be used & has the benefit of flanges in the outer race to compensate for small misalignments and small side loads. Benefits: Economical replacement, needles are retained within machined flange of the outer race. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 10mm
- Outside Diameter:
- 17mm
- Width:
- 16mm
Technical
Technical
| Fw | 10mm |
|---|---|
| D | 17mm |
| C | 16mm |
| Dynamic load C | 5940 N |
| Static load Co | 8000 N |
| Fatigue load limit Pu | 900 N |
| Speed in grease | 22000 rpm |
| Speed in oil | 34000 rpm |
| r1r2 | 0.3mm |
| Da max | 15mm |
| ra max | 0.3mm |
| Seal | G/SD10x17x3 |
| Weight | 13 g |
