SKU: NJ406-SKF

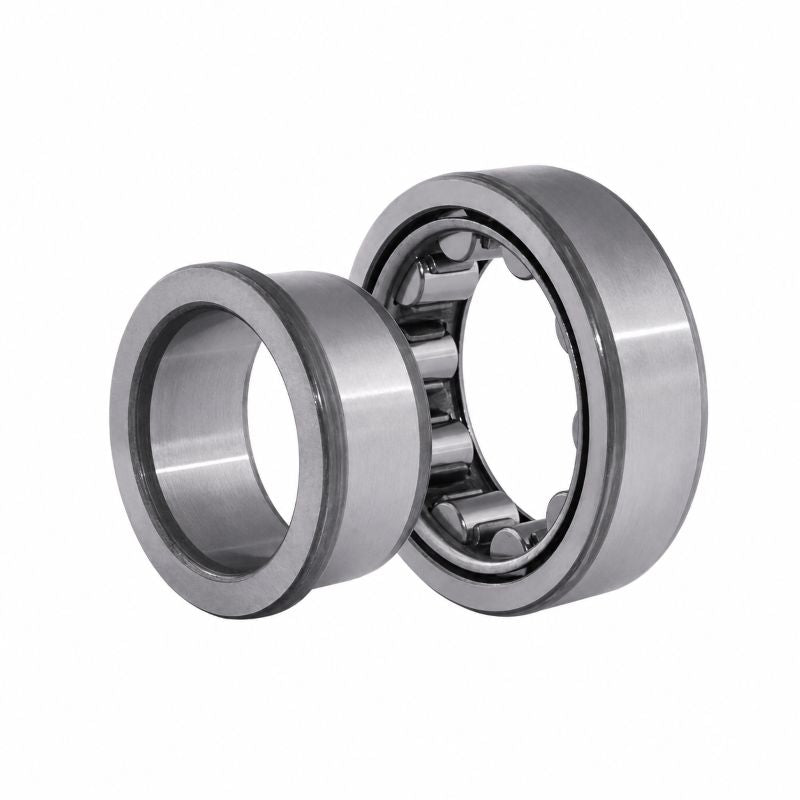

SKF NJ406 Single Row Cylindrical Roller Bearing 30x90x23mm
SKF NJ406 Single Row Cylindrical Roller Bearing 30x90x23mm
Regular price
Rs. 13,197.45
Regular price
Sale price
Rs. 13,197.45
Taxes included.
In stock
Price Break
10+
Rs. 11,745.73
19+
Rs. 11,085.86
29+
Rs. 10,953.88
39+
Rs. 10,821.91
49+
Rs. 10,689.93
74+
Rs. 10,557.96
99+
Rs. 9,898.09
199+
Rs. 9,766.11
249+
Rs. 9,634.14
499+
Rs. 9,502.16
999+
Rs. 9,238.22
Description
Description
|
SKF NJ Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has a single flange permitting the ease of assembly but limiting axial location to one direction. Benefits: Axial location, ease of assembly and fitting |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 30mm
- Outside Diameter:
- 90mm
- Width:
- 23mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 30mm |
|---|---|
| D | 90mm |
| B | 23mm |
| Dynamic load C | 60.5 kN |
| Static load Co | 53 kN |
| Fatigue load limit Pu | 6.8 kN |
| Reference speed | 9000 rpm |
| Limiting speed | 11000 rpm |
| Weight | 0.79 kg |
| d1 | 50.5mm |
| D1 | 66.6mm |
| F,E | 45mm |
| r1r2 min | 1.5mm |
| r3r4 min | 1.5mm |
| S | 1.6mm |
| da min | 41mm |
| da max | 43mm |
| db | 47mm |
| Da max | 79mm |
| ra max | 1.5mm |
| rb max | 1.5mm |
| kr | 0.15 |
| Angle ring | HJ406 |
| Angle Ring Weight | 0.08 kg |
| B1 | 7mm |
| B2 | 11.5mm |
