SKU: NJ321ECJ-EU

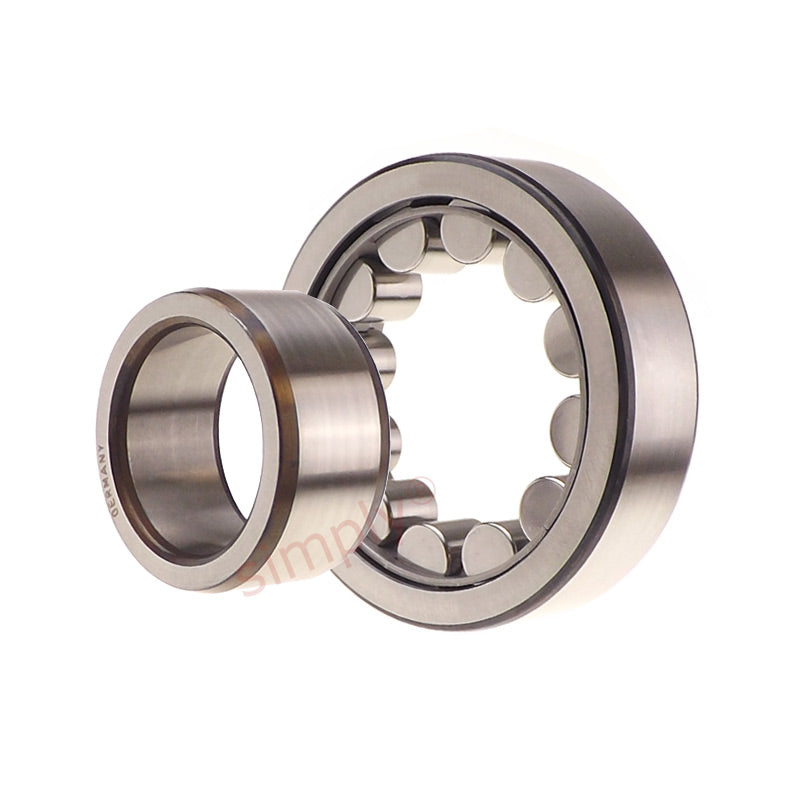

NJ321 Budget Single Row Cylindrical Roller Bearing 105x225x49mm
NJ321 Budget Single Row Cylindrical Roller Bearing 105x225x49mm
Regular price
Rs. 47,667.31
ex VAT
Regular price
Sale price
Rs. 47,667.31
ex VAT
In stock
Price Break
10+
Rs. 42,423.91
19+
Rs. 40,040.54
29+
Rs. 39,563.87
39+
Rs. 39,087.19
49+
Rs. 38,610.52
74+
Rs. 38,133.85
99+
Rs. 35,750.48
199+
Rs. 35,273.81
249+
Rs. 34,797.14
499+
Rs. 34,320.46
999+
Rs. 33,367.12
Couldn't load pickup availability
Description
Description
|
NJ Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has a single flange permitting the ease of assembly but limiting axial location to one direction. Benefits: Axial location, ease of assembly and fitting |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 105mm
- Outside Diameter:
- 225mm
- Width:
- 49mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 105mm |
|---|---|
| D | 225mm |
| B | 49mm |
| Dynamic load C | 500 kN |
| Static load Co | 500 kN |
| Fatigue load limit Pu | 57 kN |
| Reference speed | 3200 rpm |
| Limiting speed | 3800 rpm |
| Weight | 8.75 kg |
| Cage options | ML |
| d1 | 145mm |
| D1 | 190mm |
| F, E | 133mm |
| r1r2 min | 3mm |
| r3r4 min | 3mm |
| s | 3.4mm |
| da min | 119mm |
| da max | 130mm |
| db min | 148mm |
| Da max | 211mm |
| ra max | 2.5mm |
| rb max | 2.5mm |
| kr | 0.15 |
