SKU: NJ316-E-TVP2/C4-FAG

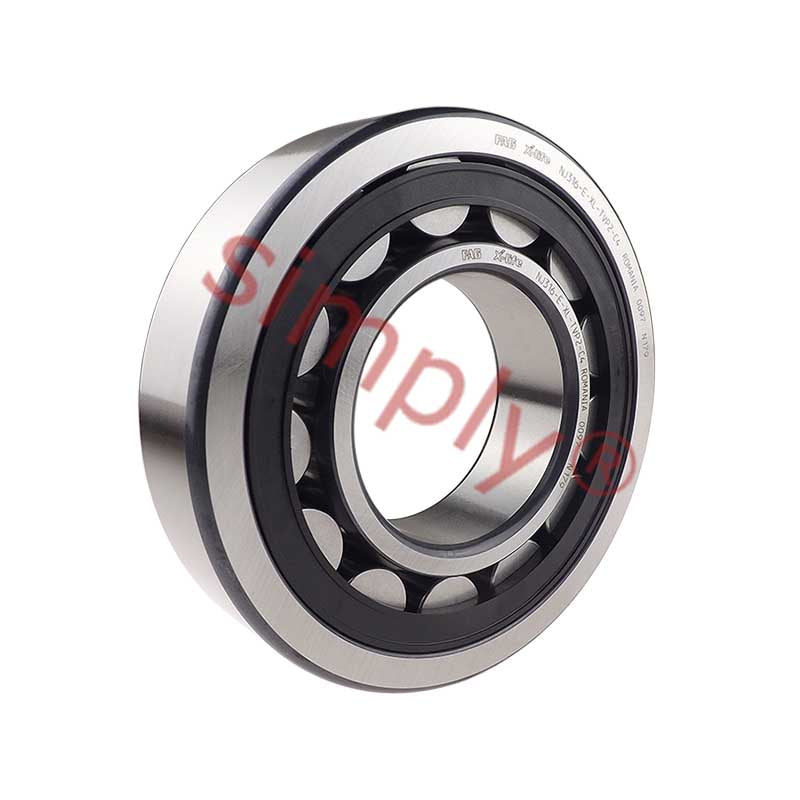

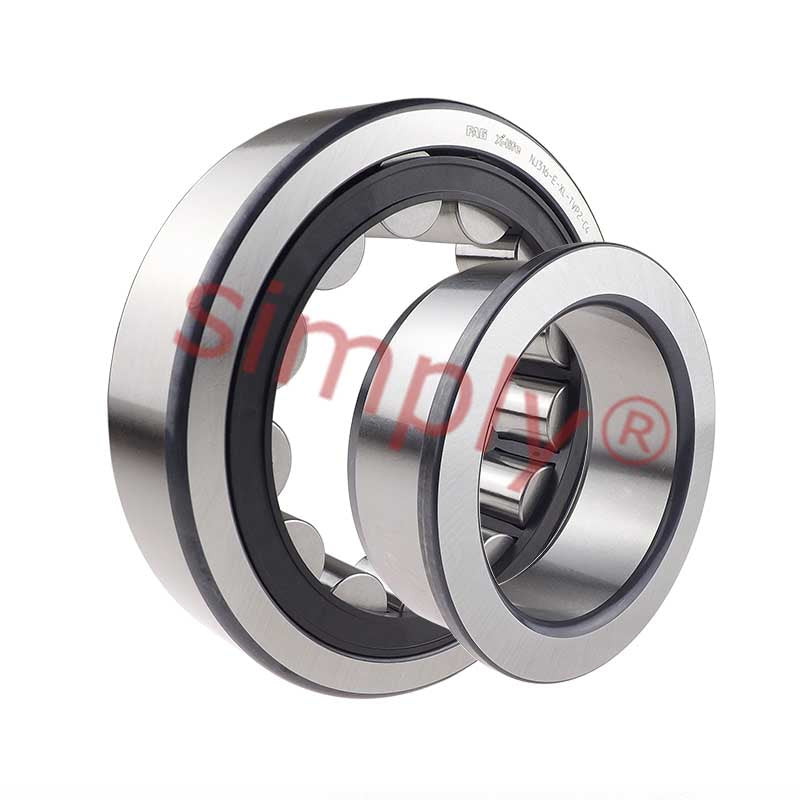

NJ316-E-TVP2-C4 X-life Cylindrical Roller Bearing with Cage 80x170x39mm
NJ316-E-TVP2-C4 X-life Cylindrical Roller Bearing with Cage 80x170x39mm
Regular price
Rs. 43,927.08
Regular price
Sale price
Rs. 43,927.08
Taxes included.
Low stock
Price Break
10+
Rs. 39,095.10
19+
Rs. 36,898.75
29+
Rs. 36,459.48
39+
Rs. 36,020.21
49+
Rs. 35,580.93
74+
Rs. 35,141.66
99+
Rs. 32,945.31
199+
Rs. 32,506.04
249+
Rs. 32,066.77
499+
Rs. 31,627.50
999+
Rs. 30,748.96
Description
Description
|
NUP Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the rollers are assembled, the inner raceway has one flange, the supplied none integral ring forms the other flange, enabling the ease of assembly and permitting axial location in both directions. Benefits: Axial location, ease of assembly and fitting |
- Brand / Quality:
- FAG - High Quality
- Inside Diameter:
- 80mm
- Outside Diameter:
- 170mm
- Width:
- 39mm
- Seals / Shields:
- None
- Clearance:
- C4
Technical
Technical
| d | 80 |
|---|---|
| D | 170 |
| B | 39 |
| r min | 2.1 |
| r1 min | 2.1 |
| s | 0.7 |
| E | 151 |
| F | 101 |
| D1 | 143.9 |
| d1 | 110.4 |
| da min | 92 |
| da max | 99 |
| dc min | 114 |
| Da max | 158 |
| ra max | 2.1 |
| Dynamic load | 300000 N |
| Static load | 275000 N |
| Fatigue limit load | 46000 N |
| Limiting speed | 3800 rpm |
| Reference speed | 4150 rpm |
| Weight | 4.03 kg |
