SKU: NJ305ECP-SKF

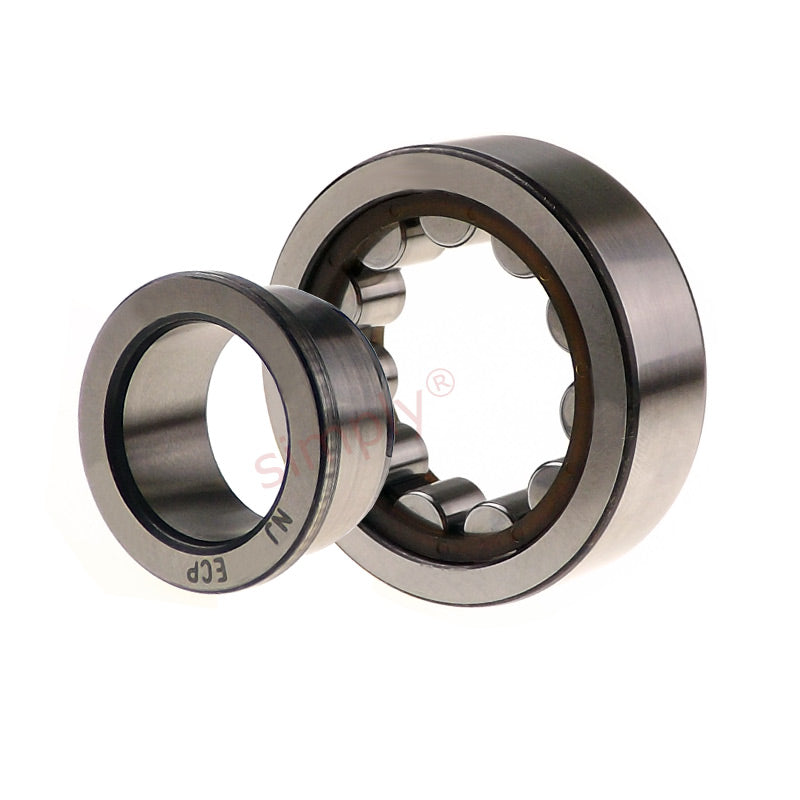

SKF NJ305ECP Single Row Cylindrical Roller Bearing with Polyamide Cage 25x62x17mm
SKF NJ305ECP Single Row Cylindrical Roller Bearing with Polyamide Cage 25x62x17mm
Regular price
Rs. 4,593.31
Regular price
Sale price
Rs. 4,593.31
Taxes included.
In stock
Price Break
10+
Rs. 4,088.05
19+
Rs. 3,858.38
29+
Rs. 3,812.45
39+
Rs. 3,766.51
49+
Rs. 3,720.58
74+
Rs. 3,674.65
99+
Rs. 3,444.98
199+
Rs. 3,399.05
249+
Rs. 3,353.12
499+
Rs. 3,307.18
999+
Rs. 3,215.32
Description
Description
|
SKF NJ Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has a single flange permitting the ease of assembly but limiting axial location to one direction. Benefits: Axial location, ease of assembly and fitting |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 25mm
- Outside Diameter:
- 62mm
- Width:
- 17mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 25mm |
|---|---|
| D | 62mm |
| B | 17mm |
| Dynamic load C | 46.5 kN |
| Static load Co | 36.5 kN |
| Fatigue load limit Pu | 4.55 kN |
| Reference speed | 12000 rpm |
| Limiting speed | 15000 rpm |
| Weight | 0.24 kg |
| Alt cage | J.ML |
| d1 | 38.1mm |
| D1 | 50.7mm |
| F,E | 34mm |
| r1r2 min | 1.1mm |
| r3r4 min | 1.1mm |
| S | 1.3mm |
| da min | 32mm |
| da max | 32mm |
| db | 40mm |
| Da max | 55mm |
| ra max | 1mm |
| rb max | 1mm |
| kr | 0.15 |
| Angle ring | HJ305EC |
| Angle Ring Weight | 0.023 kg |
| B1 | 4mm |
| B2 | 7mm |
