SKU: NJ304-E-TVP2-FAG

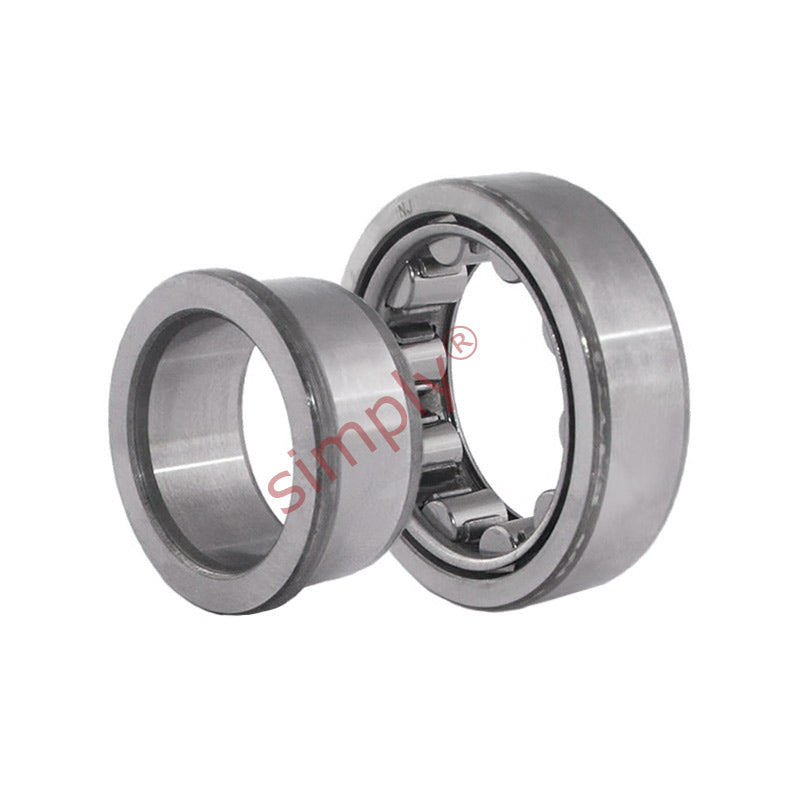

NJ304-E-TVP2 X-life Cylindrical Roller Bearing with Cage 20x52x15mm
NJ304-E-TVP2 X-life Cylindrical Roller Bearing with Cage 20x52x15mm
Regular price
Rs. 4,028.75
Regular price
Sale price
Rs. 4,028.75
Taxes included.
In stock
Price Break
10+
Rs. 3,585.59
19+
Rs. 3,384.15
29+
Rs. 3,343.86
39+
Rs. 3,303.58
49+
Rs. 3,263.29
74+
Rs. 3,223.00
99+
Rs. 3,021.56
199+
Rs. 2,981.28
249+
Rs. 2,940.99
499+
Rs. 2,900.70
999+
Rs. 2,820.13
Description
Description
|
NJ Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has a single flange permitting the ease of assembly but limiting axial location to one direction. Benefits: Axial location, ease of assembly and fitting |
- Brand / Quality:
- FAG - High Quality
- Inside Diameter:
- 20mm
- Outside Diameter:
- 52mm
- Width:
- 15mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 20 |
|---|---|
| D | 52 |
| B | 15 |
| r min | 1.1 |
| r1 min | 0.6 |
| s | 1 |
| E | 45.5 |
| F | 27.5 |
| D1 | 42.4 |
| d1 | 31.3 |
| da min | 24 |
| da max | 27 |
| dc min | 33 |
| Da max | 45 |
| ra max | 1 |
| Dynamic load | 36500 N |
| Static load | 26000 N |
| Fatigue limit load | 4050 N |
| Limiting speed | 14000 rpm |
| Reference speed | 12100 rpm |
| Weight | 0.156 kg |
