SKU: NJ2217ECP-SKF

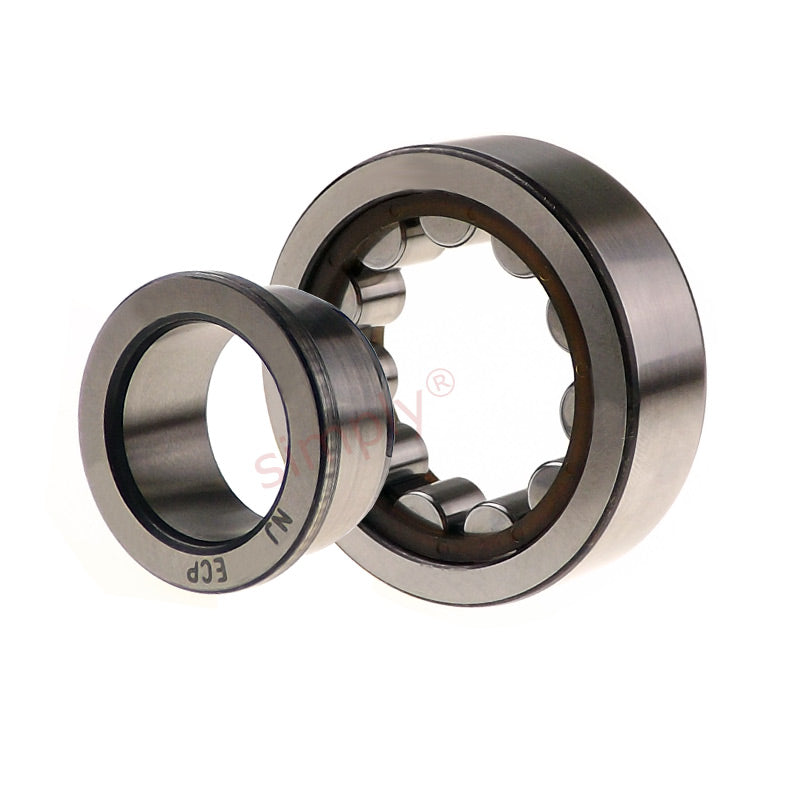

SKF NJ2217ECP Single Row Cylindrical Roller Bearing with Polyamide Cage 85x150x36mm
SKF NJ2217ECP Single Row Cylindrical Roller Bearing with Polyamide Cage 85x150x36mm
Regular price
Rs. 24,119.59
ex VAT
Regular price
Sale price
Rs. 24,119.59
ex VAT
In stock
Price Break
10+
Rs. 21,466.44
19+
Rs. 20,260.46
29+
Rs. 20,019.26
39+
Rs. 19,778.06
49+
Rs. 19,536.87
74+
Rs. 19,295.67
99+
Rs. 18,089.69
199+
Rs. 17,848.50
249+
Rs. 17,607.30
499+
Rs. 17,366.10
999+
Rs. 16,883.71
Couldn't load pickup availability
Description
Description
|
SKF NJ Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has a single flange permitting the ease of assembly but limiting axial location to one direction. Benefits: Axial location, ease of assembly and fitting |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 85mm
- Outside Diameter:
- 150mm
- Width:
- 36mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 85mm |
|---|---|
| D | 150mm |
| B | 36mm |
| Dynamic load C | 250 kN |
| Static load Co | 280 kN |
| Fatigue load limit Pu | 34.5 kN |
| Reference speed | 4800 rpm |
| Limiting speed | 5300 rpm |
| Weight | 2.55 kg |
| Alt cage | J.M.ML |
| d1 | 107mm |
| D1 | 131mm |
| F,E | 100.5mm |
| r1r2 min | 2mm |
| r3r4 min | 2mm |
| S | 2mm |
| da min | 96mm |
| da max | 98mm |
| db | 110mm |
| Da max | 139mm |
| ra max | 2mm |
| rb max | 2mm |
| kr | 0.2 |
