SKU: NJ218-EU

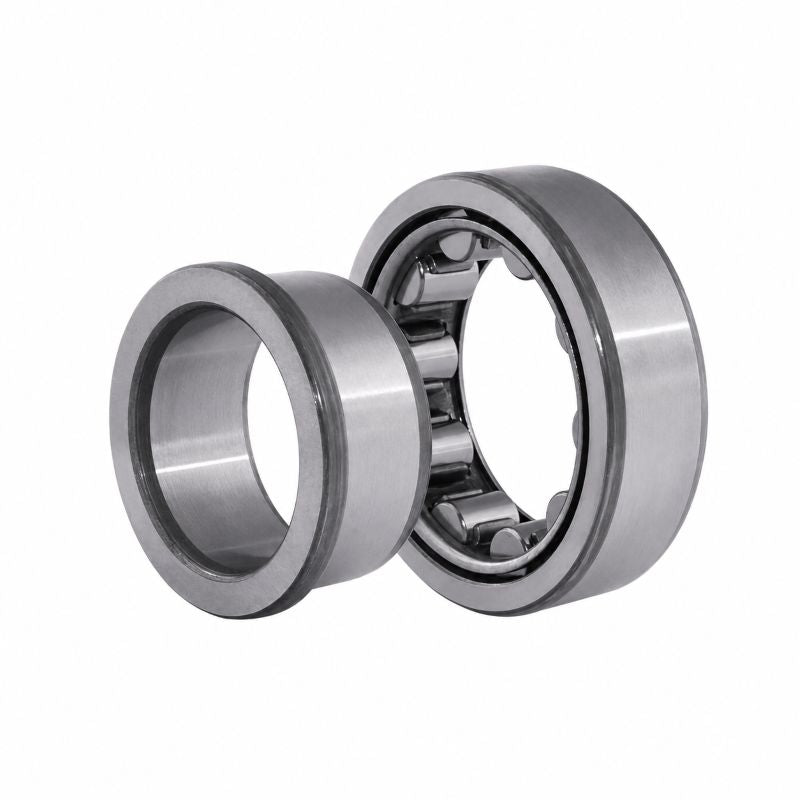

NJ218 Budget Single Row Cylindrical Roller Bearing 90x160x30mm
NJ218 Budget Single Row Cylindrical Roller Bearing 90x160x30mm
Regular price
Rs. 13,672.15
ex VAT
Regular price
Sale price
Rs. 13,672.15
ex VAT
In stock
Price Break
10+
Rs. 12,168.21
19+
Rs. 11,484.61
29+
Rs. 11,347.88
39+
Rs. 11,211.16
49+
Rs. 11,074.44
74+
Rs. 10,937.72
99+
Rs. 10,254.11
199+
Rs. 10,117.39
249+
Rs. 9,980.67
499+
Rs. 9,843.95
999+
Rs. 9,570.51
Couldn't load pickup availability
Description
Description
|
NJ Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has a single flange permitting the ease of assembly but limiting axial location to one direction. Benefits: Axial location, ease of assembly and fitting |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 90mm
- Outside Diameter:
- 160mm
- Width:
- 30mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 90mm |
|---|---|
| D | 160mm |
| B | 30mm |
| Dynamic load C | 208 kN |
| Static load Co | 220 kN |
| Fatigue load limit Pu | 27 kN |
| Reference speed | 4500 rpm |
| Limiting speed | 5000 rpm |
| Weight | 2.4 kg |
| Cage options | J.M.ML |
| d1 | 114mm |
| D1 | 140mm |
| F, E | 107mm |
| r1r2 min | 2mm |
| r3r4 min | 2mm |
| s | 1.8mm |
| da min | 101mm |
| da max | 104mm |
| db min | 117mm |
| Da max | 149mm |
| ra max | 2mm |
| rb max | 2mm |
| kr | 0.15 |
| Angle ring | HJ218EC |
| Angle ring weight | 0.31kg |
| B1 | 9mm |
| B2 | 14mm |
