SKU: NF.305.MB

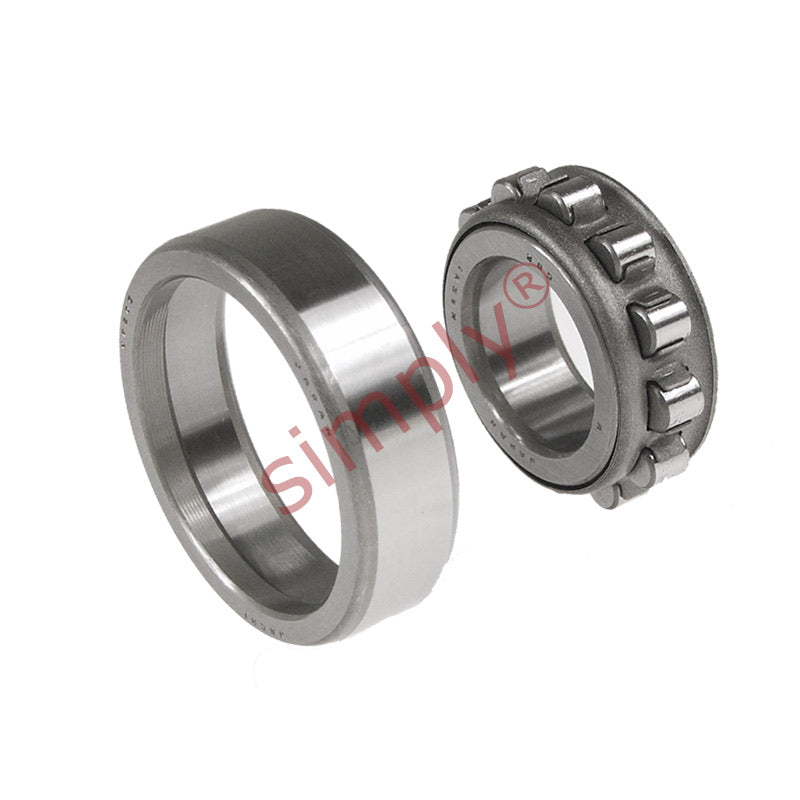

Major Brand NF305 Cylindrical Roller Bearing 25x62x17mm
Major Brand NF305 Cylindrical Roller Bearing 25x62x17mm
Regular price
Rs. 5,923.43
Regular price
Sale price
Rs. 5,923.43
Taxes included.
In stock
Price Break
10+
Rs. 5,271.85
19+
Rs. 4,975.68
29+
Rs. 4,916.45
39+
Rs. 4,857.21
49+
Rs. 4,797.98
74+
Rs. 4,738.74
99+
Rs. 4,442.57
199+
Rs. 4,383.34
249+
Rs. 4,324.10
499+
Rs. 4,264.87
999+
Rs. 4,146.40
Description
Description
|
NF and MRJA Series Single Row Cylindrical Roller Bearings: The outer ring of this type has one integral flange / shoulder, the inner raceway has a two flanges / shoulders around which the cage and rollers are assembled. The outer raceway shoulder permits the ease of assembly and limits axial location to one direction. Benefits: Axial location, ease of assembly and fitting |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 25mm
- Outside Diameter:
- 62mm
- Width:
- 17mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 25mm |
|---|---|
| D | 62mm |
| B | 17mm |
| Ew | 53mm |
| Fw | 35mm |
| r1 | 1.1mm |
| 1.1mm | Dynamic Load |
| 29200N | Static Load |
| 25200N | Speed in Grease |
| 9500rpm | Speed in Oil |
| 12000rpm | da min |
| 32mm | db min |
| 32mm | db max |
| 33mm | dc |
| 37mm | Da max |
| 55mm | Db min |
| 55mm | Db max |
| 55mm | ra max |
| 1mm | ra1 max |
| 1mm | Weight |
| 0.238kg | N/A |
