SKU: NCF2914CV-SKF

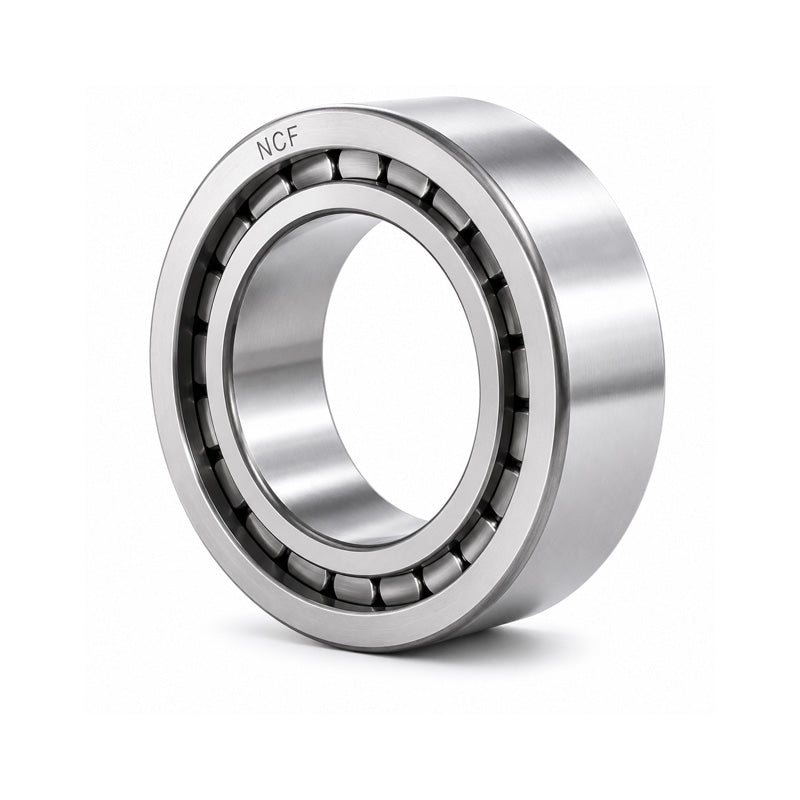

SKF NCF2914CV Single Row Cylindrical Roller Bearing 70x100x19mm
SKF NCF2914CV Single Row Cylindrical Roller Bearing 70x100x19mm
Regular price
Rs. 31,263.28
ex VAT
Regular price
Sale price
Rs. 31,263.28
ex VAT
Equivalent to: SL18 2914
In stock
Price Break
10+
Rs. 27,824.32
19+
Rs. 26,261.16
29+
Rs. 25,948.52
39+
Rs. 25,635.89
49+
Rs. 25,323.26
74+
Rs. 25,010.62
99+
Rs. 23,447.46
199+
Rs. 23,134.83
249+
Rs. 22,822.19
499+
Rs. 22,509.56
999+
Rs. 21,884.30
Couldn't load pickup availability
Description
Description
|
SKF NCF Series Single Row Full Complement Cylindrical Roller Bearings: Have integral locating flanges on the inner race and one on the outer raceway serving to permit axial location in one direction, a retaining ring is fitted opposite the integral flange to maintain the assembly. Being of full complement design they have the maximum number of rollers and can tolerate heavy radial loads and tolerate small axial displacements from shaft expansion within the bearing. Benefits: Tolerate axial load in one direction, none separable construction |
Equivalent: SL18 2914
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 70mm
- Outside Diameter:
- 100mm
- Width:
- 19mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 70mm |
|---|---|
| D | 100mm |
| B | 19mm |
| Dynamic load C | 76.5 kN |
| Static load Co | 116 kN |
| Fatigue load limit Pu | 13.7 kN |
| Reference speed | 3000 rpm |
| Limiting speed | 3800 rpm |
| Weight | 0.49 kg |
| d1 | 80.5mm |
| D1 | 88.5mm |
| E/F | 92.5mm |
| r1r2 min | 1mm |
| r3r4 min | 1mm |
| S | 1mm |
| da min | 75mm |
| das | 78.5mm |
| Da max | 95mm |
| Db max | 95mm |
| ra max | 1mm |
| rb max | 1mm |
