SKU: NAX.1023

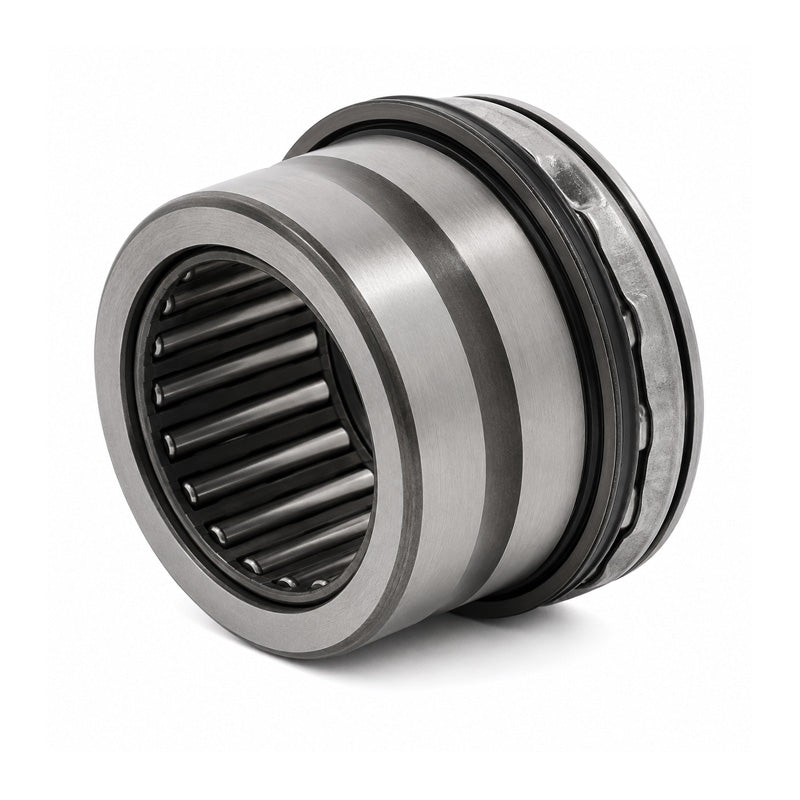

NAX1023 Needle Roller With Thrust Ball Bearing 10x25x23mm
NAX1023 Needle Roller With Thrust Ball Bearing 10x25x23mm
Regular price
Rs. 2,742.16
Regular price
Sale price
Rs. 2,742.16
Taxes included.
In stock
Price Break
10+
Rs. 2,440.52
19+
Rs. 2,303.41
29+
Rs. 2,275.99
39+
Rs. 2,248.57
49+
Rs. 2,221.15
74+
Rs. 2,193.73
99+
Rs. 2,056.62
199+
Rs. 2,029.20
249+
Rs. 2,001.78
499+
Rs. 1,974.36
999+
Rs. 1,919.51
Description
Description
IKO NAX Needle Roller / Ball Roller Thrust Combination: Of a separable design, the outer ring with integral housing washer and integral needle roller cage assembly, the ball roller and the shaft washer can all be mounted individually.
Benefits: High thrust loading, separable, easily mounted
- Brand / Quality:
- IKO - High Quality
- Inside Diameter:
- 10mm
- Outside Diameter:
- 25mm
- Length:
- 23mm
Technical
Technical
| Fw | 10mm |
|---|---|
| D | 19mm |
| D1 | 25mm |
| L | 23mm |
| H | 9mm |
| l1 | 6.5mm |
| rs min | 0.3mm |
| di | 10mm |
| da Min | 18mm |
| Dynamic load | 8230 N |
| Axial dynamic load | 10000 N |
| Static load | 9190 N |
| Axial static load | 11100 N |
| Allowable Rotational Speed | 9500rpm |
| Weight | 38.5g |
