SKU: NATV6LL/3AS-NTN

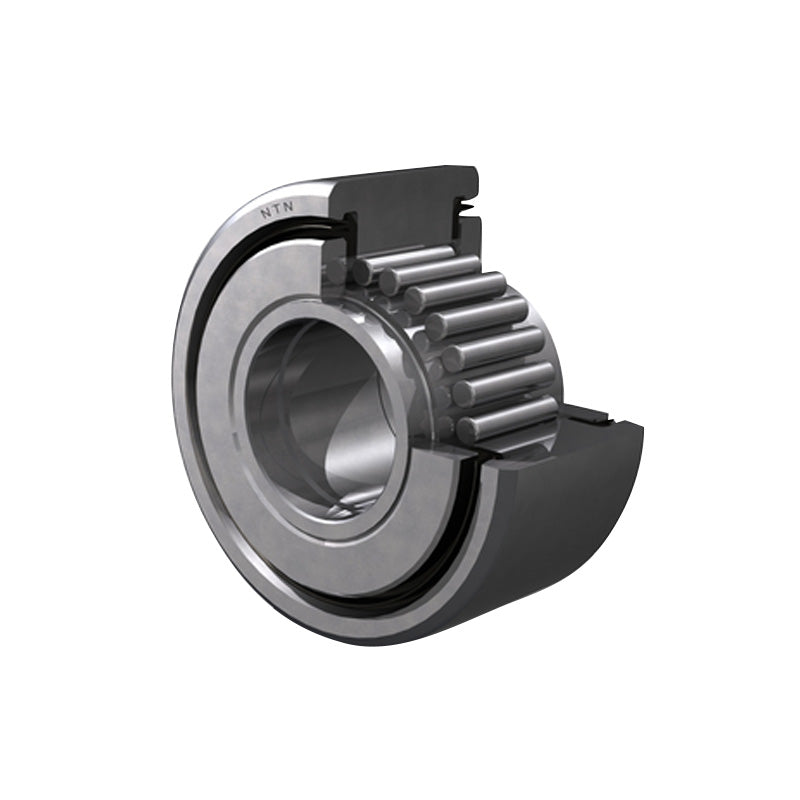

NTN NATV6LL/3AS Yoke Type Track Roller with Inner Race 6x19x11mm
NTN NATV6LL/3AS Yoke Type Track Roller with Inner Race 6x19x11mm
Regular price
Rs. 1,948.45
Regular price
Sale price
Rs. 1,948.45
Taxes included.
In stock
Price Break
10+
Rs. 1,734.12
19+
Rs. 1,636.70
29+
Rs. 1,617.21
39+
Rs. 1,597.73
49+
Rs. 1,578.24
74+
Rs. 1,558.76
99+
Rs. 1,461.34
199+
Rs. 1,441.85
249+
Rs. 1,422.37
499+
Rs. 1,402.88
999+
Rs. 1,363.92
Description
Description
NTN NATV Type Track Rollers: These track rollers are premium-quality, double-sealed cam followers designed for smooth and reliable motion in demanding applications. Built with precision needle roller bearings and a thick-walled outer ring, these rollers provide exceptional load-carrying capacity, wear resistance, and long service life even under heavy or shock loads. The integrated design ensures easy installation and maintenance-free operation, making them ideal for use in automation equipment, conveyors, cam drives, and linear motion systems.
Benefits: High load capacity, durable and reliable, easy installation
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 6mm
- Outside Diameter:
- 19mm
- Width:
- 11mm
Technical
Technical

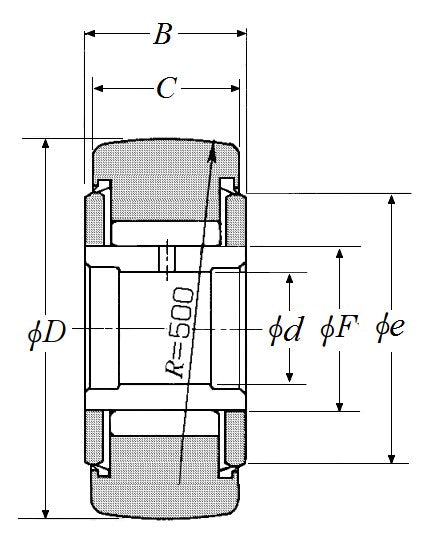

| d - Inside diameter | 6mm |
|---|---|
| D - Outside diameter | 19mm |
| C - Outer ring width | 11mm |
| F - Under roller diameter | 10mm |
| B - Bearing width | 12mm |
| e - Inlet diameter | 14mm |
| R - Track roller radius | 500mm |
| Bearing with/without cage | Without |
| Radial clearance class | CN |
| Precision class | P0 |
| Cr - Dynamic load rating | 7.45 kN |
| C0r - Static load rating | 11.7 kN |
| Track load capacity | 1.38 kN |
| N - Grease lubrication limit speed | 10000 tr/min |
| Tmin - Minimum operating temperature | -20 Deg C |
| Tmax - Maximum operating temperature | +100 Deg C |
