SKU: NATV40LL/3AS-NTN

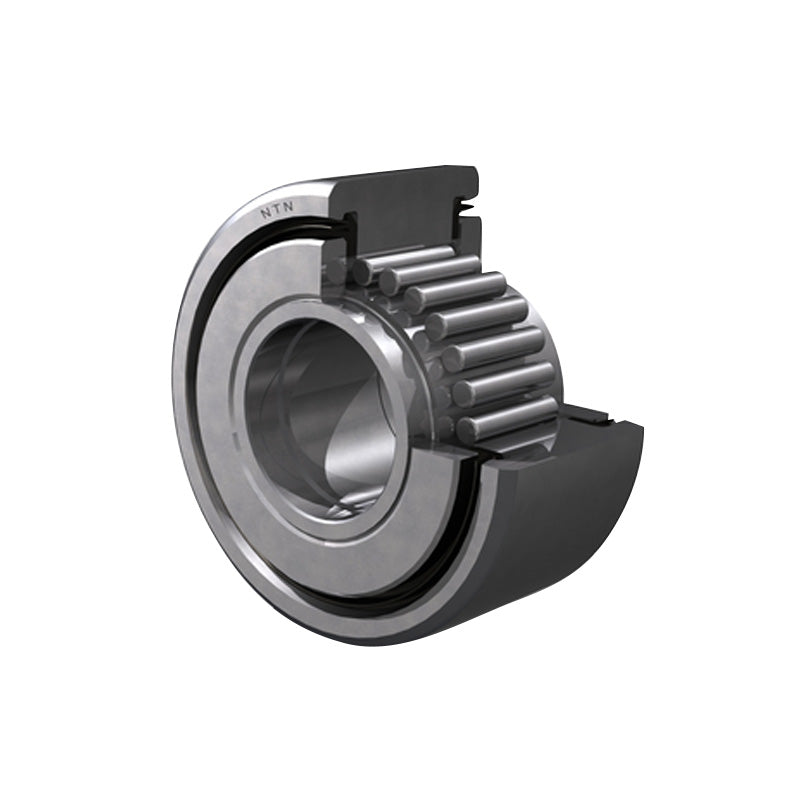

NTN NATV40LL/3AS Yoke Type Track Roller with Inner Race 40x80x30mm
NTN NATV40LL/3AS Yoke Type Track Roller with Inner Race 40x80x30mm
Regular price
Rs. 7,690.09
Regular price
Sale price
Rs. 7,690.09
Taxes included.
In stock
Price Break
10+
Rs. 6,844.18
19+
Rs. 6,459.68
29+
Rs. 6,382.77
39+
Rs. 6,305.87
49+
Rs. 6,228.97
74+
Rs. 6,152.07
99+
Rs. 5,767.57
199+
Rs. 5,690.67
249+
Rs. 5,613.77
499+
Rs. 5,536.86
999+
Rs. 5,383.06
Description
Description
NTN NATV Type Track Rollers: These track rollers are premium-quality, double-sealed cam followers designed for smooth and reliable motion in demanding applications. Built with precision needle roller bearings and a thick-walled outer ring, these rollers provide exceptional load-carrying capacity, wear resistance, and long service life even under heavy or shock loads. The integrated design ensures easy installation and maintenance-free operation, making them ideal for use in automation equipment, conveyors, cam drives, and linear motion systems.
Benefits: High load capacity, durable and reliable, easy installation
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 40mm
- Outside Diameter:
- 80mm
- Width:
- 30mm
Technical
Technical
| d - Inside diameter | 40mm |
|---|---|
| D - Outside diameter | 80mm |
| C - Outer ring width | 30mm |
| F - Under roller diameter | 50mm |
| B - Bearing width | 32mm |
| e - Inlet diameter | 66mm |
| R - Track roller radius | 500mm |
| Bearing with/without cage | Without |
| Radial clearance class | CN |
| Precision class | P0 |
| Cr - Dynamic load rating | 68.5 kN |
| C0r - Static load rating | 171 kN |
| Track load capacity | 9.8 kN |
| N - Grease lubrication limit speed | 2000 tr/min |
| Tmin - Minimum operating temperature | -20 Deg C |
| Tmax - Maximum operating temperature | +100 Deg C |
