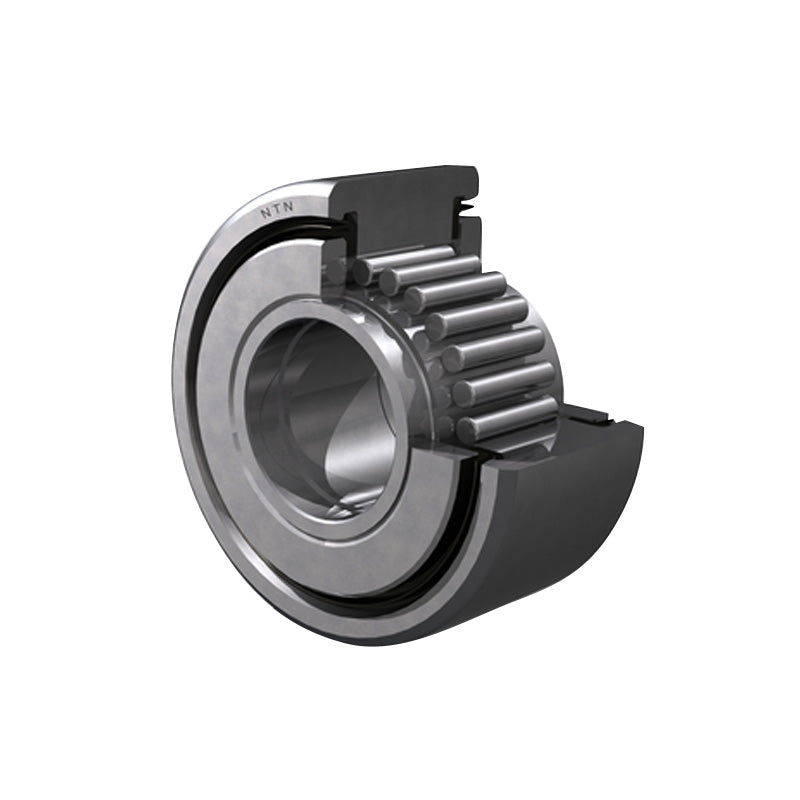

NTN NATV15LL/3AS Yoke Type Track Roller with Inner Race 15x35x18mm
NTN NATV15LL/3AS Yoke Type Track Roller with Inner Race 15x35x18mm
Regular price
Rs. 3,389.94
Regular price
Sale price
Rs. 3,389.94
Taxes included.
In stock
Price Break
10+
Rs. 3,017.05
19+
Rs. 2,847.55
29+
Rs. 2,813.65
39+
Rs. 2,779.75
49+
Rs. 2,745.85
74+
Rs. 2,711.95
99+
Rs. 2,542.46
199+
Rs. 2,508.56
249+
Rs. 2,474.66
499+
Rs. 2,440.76
999+
Rs. 2,372.96
Description
Description
NTN NATV Type Track Rollers: These track rollers are premium-quality, double-sealed cam followers designed for smooth and reliable motion in demanding applications. Built with precision needle roller bearings and a thick-walled outer ring, these rollers provide exceptional load-carrying capacity, wear resistance, and long service life even under heavy or shock loads. The integrated design ensures easy installation and maintenance-free operation, making them ideal for use in automation equipment, conveyors, cam drives, and linear motion systems.
Benefits: High load capacity, durable and reliable, easy installation
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 15mm
- Outside Diameter:
- 35mm
- Width:
- 18mm
Technical
Technical
| d - Inside diameter | 15mm |
|---|---|
| D - Outside diameter | 35mm |
| C - Outer ring width | 18mm |
| F - Under roller diameter | 20mm |
| B - Bearing width | 19mm |
| e - Inlet diameter | 27mm |
| R - Track roller radius | 500mm |
| Bearing with/without cage | Without |
| Radial clearance class | CN |
| Precision class | P0 |
| Cr - Dynamic load rating | 18.4 kN |
| C0r - Static load rating | 38 kN |
| Track load capacity | 3.2 kN |
| N - Grease lubrication limit speed | 5000 tr/min |
| Tmin - Minimum operating temperature | -20 Deg C |
| Tmax - Maximum operating temperature | +100 Deg C |
