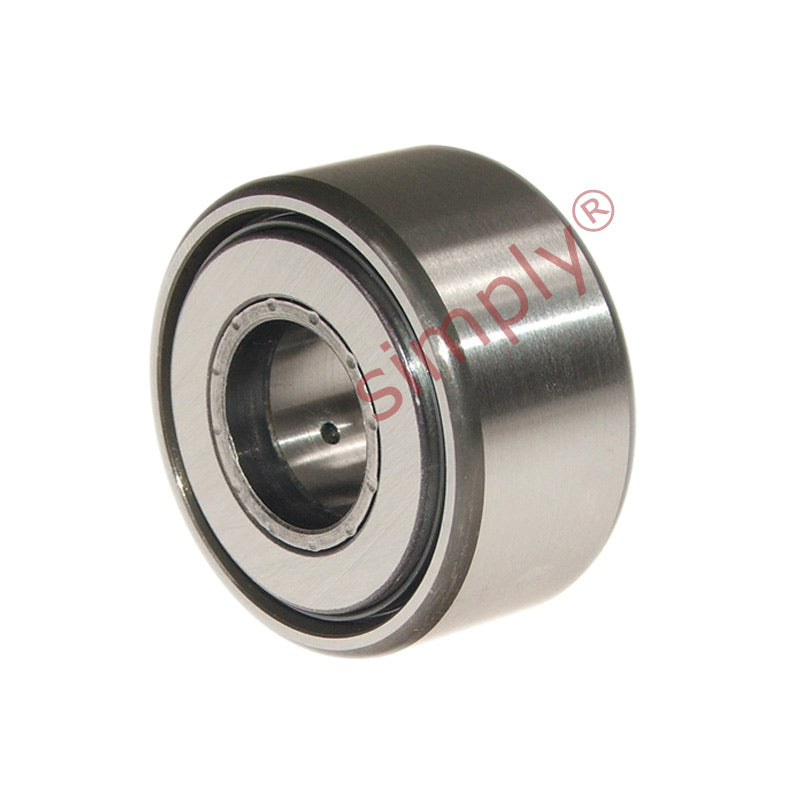

Major Brand NATV15 Support Roller With Axial Guidance 15x35x19mm
Major Brand NATV15 Support Roller With Axial Guidance 15x35x19mm
Regular price
Rs. 6,578.88
Regular price
Sale price
Rs. 6,578.88
Taxes included.
In stock
Price Break
10+
Rs. 5,855.20
19+
Rs. 5,526.26
29+
Rs. 5,460.47
39+
Rs. 5,394.68
49+
Rs. 5,328.89
74+
Rs. 5,263.10
99+
Rs. 4,934.16
199+
Rs. 4,868.37
249+
Rs. 4,802.58
499+
Rs. 4,736.79
999+
Rs. 4,605.22
Share this product
Description
Description
NATV Axial Guidance Support Rollers: Similar in design to the NATR series the NATV has a full complement needle roller assembly arrangement, the absence of a cage permits the maximum number of rollers to be fitted thus providing an extremely high load to be handled at reasonably high speed, the outer ring is guided by pressed on side washers which also form gap seals with the outer ring which is particularly thick by design, intended to cope with heavy loads and also shock loads, NATV support roller will require frequent re-lubrication. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 15mm
- Outside Diameter:
- 35mm
- Width:
- 18mm
Technical
Technical
| d | 15mm |
|---|---|
| D | 35mm |
| B | 19mm |
| C | 18mm |
| d1 | 27.6mm |
| r min | 0.6mm |
| r1 min | -mm |
| Speed rating | 1600 rpm |
| Basic dynamic load | 12300 N |
| Basic static load | 23200 N |
| Fatigue load limit Pu | 2700 N |
| Max radial dynamic force | 14600 N |
| Max radial static force | 20800 N |
| Weight | 110 g |
