SKU: NATV12X/3AS-NTN

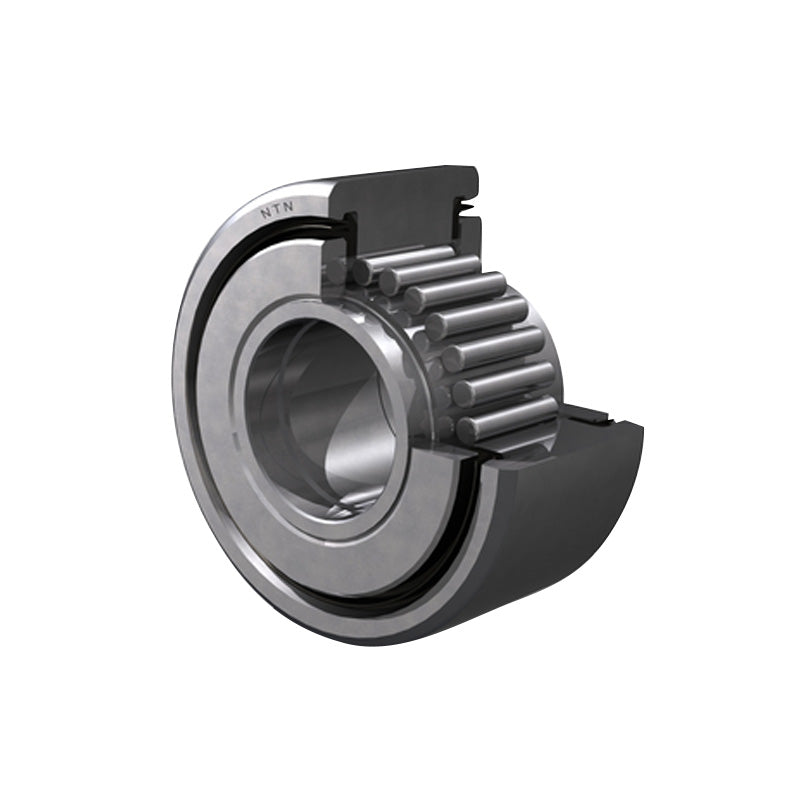

NTN NATV12X/3AS Yoke Type Track Roller with Inner Race 12x32x14mm - Allow 2-3 Days
NTN NATV12X/3AS Yoke Type Track Roller with Inner Race 12x32x14mm - Allow 2-3 Days
Regular price
Rs. 3,402.74
Regular price
Sale price
Rs. 3,402.74
Taxes included.
In stock
Price Break
5+
Rs. 3,368.71
10+
Rs. 3,232.60
20+
Rs. 3,164.55
50+
Rs. 3,062.47
100+
Rs. 2,994.41
500+
Rs. 2,824.27
1000+
Rs. 2,381.92
Description
Description
NTN NATV Type Track Rollers: These track rollers are premium-quality, double-sealed cam followers designed for smooth and reliable motion in demanding applications. Built with precision needle roller bearings and a thick-walled outer ring, these rollers provide exceptional load-carrying capacity, wear resistance, and long service life even under heavy or shock loads. The integrated design ensures easy installation and maintenance-free operation, making them ideal for use in automation equipment, conveyors, cam drives, and linear motion systems.
Benefits: High load capacity, durable and reliable, easy installation
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 12mm
- Outside Diameter:
- 32mm
- Width:
- 14mm
Technical
Technical
| d - Inside diameter | 12mm |
|---|---|
| D - Outside diameter | 32mm |
| C - Outer ring width | 14mm |
| F - Under roller diameter | 17mm |
| B - Bearing width | 15mm |
| e - Inlet diameter | 25mm |
| Bearing with/without cage | Without |
| Radial clearance class | CN |
| Precision class | P0 |
| Cr - Dynamic load rating | 13 kN |
| C0r - Static load rating | 23 kN |
| Track load capacity | 8.2 kN |
| N - Grease lubrication limit speed | 6000 tr/min |
| Tmin - Minimum operating temperature | -20 Deg C |
| Tmax - Maximum operating temperature | +120 Deg C |
