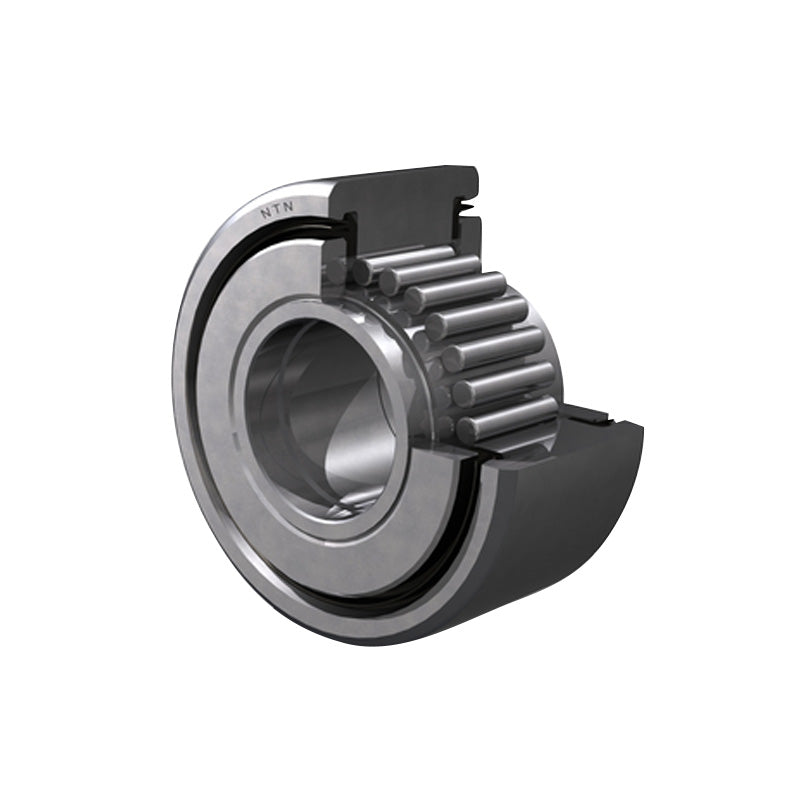

NTN NATV10LL/3AS Yoke Type Track Roller with Inner Race 10x30x14mm
NTN NATV10LL/3AS Yoke Type Track Roller with Inner Race 10x30x14mm
Regular price
Rs. 2,961.66
ex VAT
Regular price
Sale price
Rs. 2,961.66
ex VAT
In stock
Price Break
10+
Rs. 2,635.88
19+
Rs. 2,487.79
29+
Rs. 2,458.18
39+
Rs. 2,428.56
49+
Rs. 2,398.94
74+
Rs. 2,369.33
99+
Rs. 2,221.25
199+
Rs. 2,191.63
249+
Rs. 2,162.01
499+
Rs. 2,132.40
999+
Rs. 2,073.16
Couldn't load pickup availability
Description
Description
NTN NATV Type Track Rollers: These track rollers are premium-quality, double-sealed cam followers designed for smooth and reliable motion in demanding applications. Built with precision needle roller bearings and a thick-walled outer ring, these rollers provide exceptional load-carrying capacity, wear resistance, and long service life even under heavy or shock loads. The integrated design ensures easy installation and maintenance-free operation, making them ideal for use in automation equipment, conveyors, cam drives, and linear motion systems.
Benefits: High load capacity, durable and reliable, easy installation
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 10mm
- Outside Diameter:
- 30mm
- Width:
- 14mm
Technical
Technical
| d - Inside diameter | 10mm |
|---|---|
| D - Outside diameter | 30mm |
| C - Outer ring width | 14mm |
| F - Under roller diameter | 15mm |
| B - Bearing width | 15mm |
| e - Inlet diameter | 23mm |
| R - Track roller radius | 500mm |
| Bearing with/without cage | Without |
| Radial clearance class | CN |
| Precision class | P0 |
| Cr - Dynamic load rating | 12 kN |
| C0r - Static load rating | 20.3 kN |
| Track load capacity | 2.62 kN |
| N - Grease lubrication limit speed | 6500 tr/min |
| Tmin - Minimum operating temperature | -20 Deg C |
| Tmax - Maximum operating temperature | +100 Deg C |
