SKU: NATR8PPA-EU

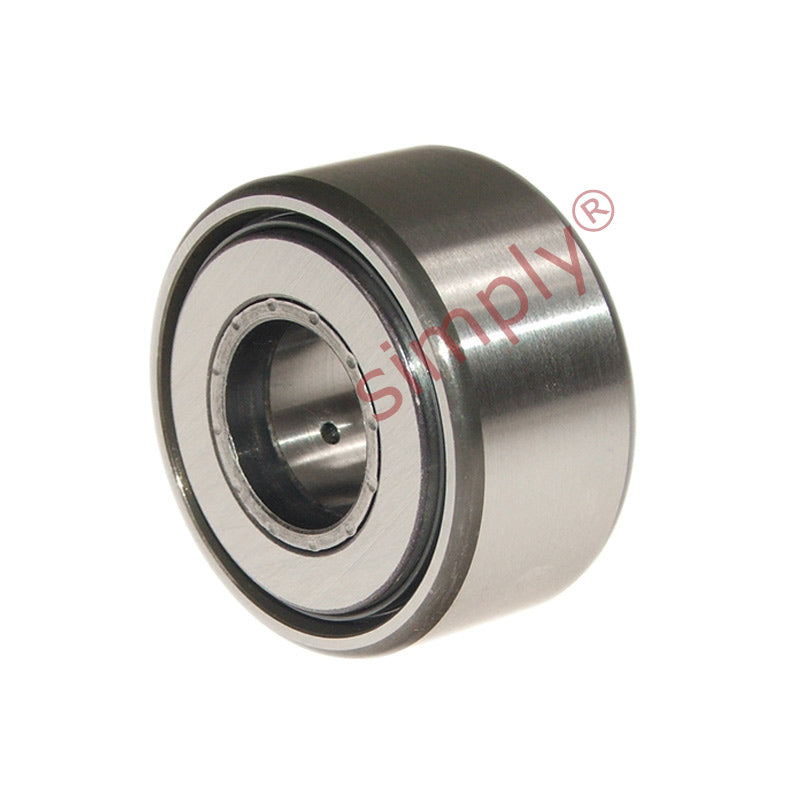

NATR8PPA Budget Support Roller With Axial Guidance 8x24x15mm
NATR8PPA Budget Support Roller With Axial Guidance 8x24x15mm
Regular price
Rs. 2,112.31
Regular price
Sale price
Rs. 2,112.31
Taxes included.
Equivalent to: NATR8PP
In stock
Price Break
10+
Rs. 1,879.96
19+
Rs. 1,774.34
29+
Rs. 1,753.22
39+
Rs. 1,732.09
49+
Rs. 1,710.97
74+
Rs. 1,689.85
99+
Rs. 1,584.23
199+
Rs. 1,563.11
249+
Rs. 1,541.99
499+
Rs. 1,520.86
999+
Rs. 1,478.62
Description
Description
Budget NATR Axial Guidance Support Rollers: This type of support roller incorporates a guided needle roller cage arrangement and permits relatively high speed operation, the outer ring is guided by pressed on side washers which also form gap seals with the outer ring which is particularly thick by design, intended to cope with heavy loads and also shock loads. |
Equivalent: NATR8PP
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 8mm
- Outside Diameter:
- 24mm
- Width:
- 14mm
Technical
Technical
| D | 24mm |
|---|---|
| d | 8mm |
| C | 14mm |
| B | 15mm |
| d1 | 19mm |
| r min | 0.3mm |
| Speed rating | 7500 rpm |
| Basic dynamic load | 5280 N |
| Basic static load | 6100 N |
| Fatigue load limit Pu | 695 N |
| Max radial dynamic force | 5200 N |
| Max radial static force | 7350 N |
| Weight | 38 g |
