SKU: NATR12CT-NTN

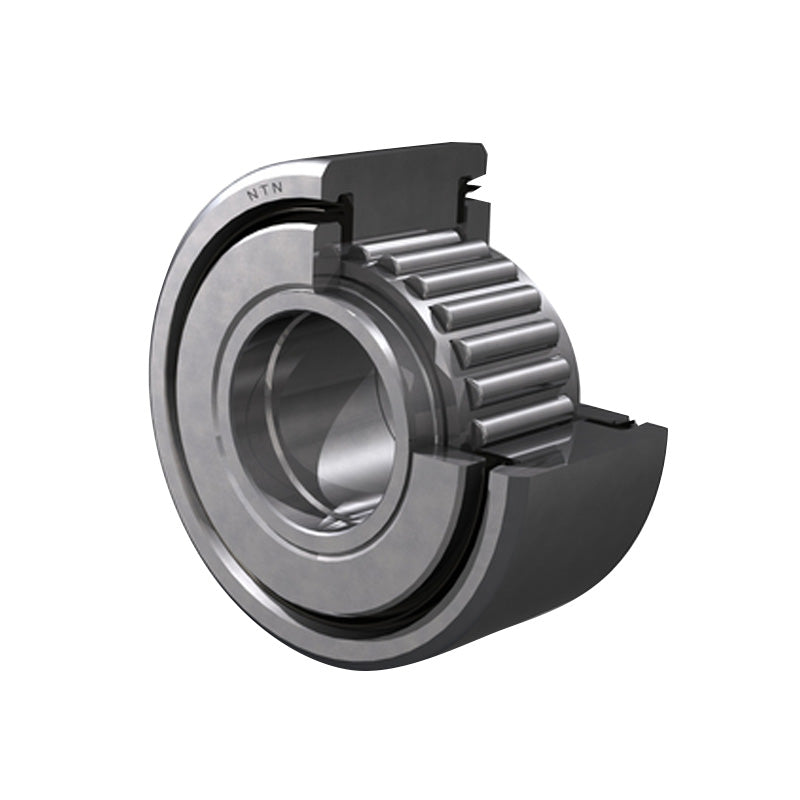

NTN NATR12CT Yoke Type Track Roller with Inner Race 12x32x14mm
NTN NATR12CT Yoke Type Track Roller with Inner Race 12x32x14mm
Regular price
Rs. 2,966.19
Regular price
Sale price
Rs. 2,966.19
Taxes included.
In stock
Price Break
10+
Rs. 2,639.91
19+
Rs. 2,491.60
29+
Rs. 2,461.94
39+
Rs. 2,432.28
49+
Rs. 2,402.61
74+
Rs. 2,372.95
99+
Rs. 2,224.64
199+
Rs. 2,194.98
249+
Rs. 2,165.32
499+
Rs. 2,135.66
999+
Rs. 2,076.33
Description
Description
NTN NATR Type Track Rollers: These track rollers are high-performance, double-shielded cam followers designed to deliver smooth, efficient motion and long-lasting reliability. Featuring a thick-walled outer ring and a cage-guided needle roller bearing assembly, these rollers offer excellent load-carrying capacity and precise rotational performance. Their robust construction ensures stability under heavy loads, while the protective seals keep out contaminants for extended bearing life. Perfect for use in conveyors, cam drives, linear guidance systems, and material handling equipment.
Benefits: High strength and stability, long service life, maintenance friendly
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 12mm
- Outside Diameter:
- 32mm
- Width:
- 14mm
Technical
Technical

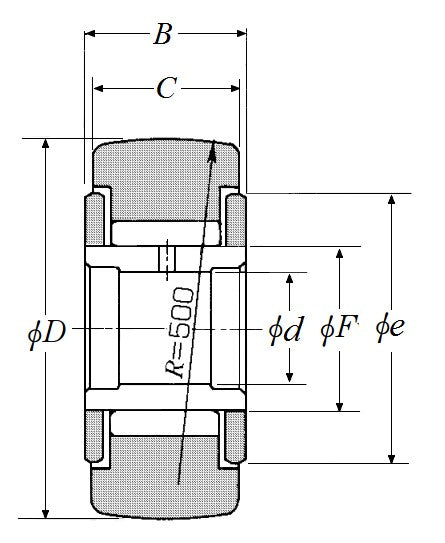

| d - Inside diameter | 12mm |
|---|---|
| D - Outside diameter | 32mm |
| C - Outer ring width | 14mm |
| F - Under roller diameter | 17mm |
| B - Bearing width | 15mm |
| e - Inlet diameter | 25mm |
| R - Track roller radius | 500mm |
| Bearing with/without cage | With |
| Radial clearance class | CN |
| Precision class | P0 |
| Cr - Dynamic load rating | 8.85 kN |
| C0r - Static load rating | 11.7 kN |
| Track load capacity | 2.86 kN |
| N - Grease lubrication limit speed | 9000 tr/min |
| N - Oil lubrication limit speed | 12000 tr/min |
| Tmin - Minimum operating temperature | -20 Deg C |
| Tmax - Maximum operating temperature | +120 Deg C |
