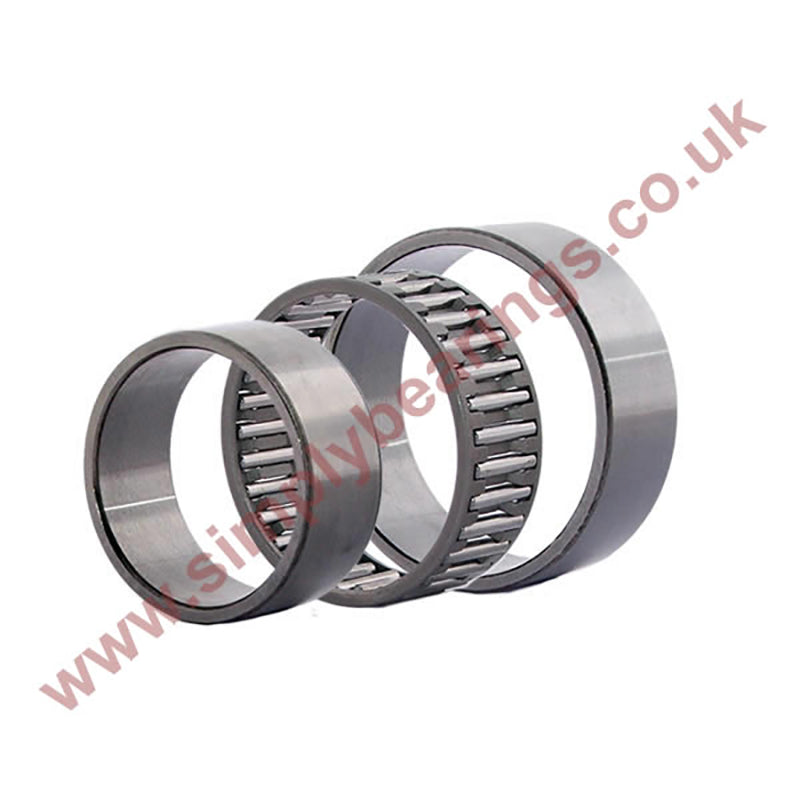

NAO90x120x30 Budget Needle Roller Bearing Without Flanges and With Shaft Sleeve
NAO90x120x30 Budget Needle Roller Bearing Without Flanges and With Shaft Sleeve
Regular price
Rs. 21,220.39
Regular price
Sale price
Rs. 21,220.39
Taxes included.
In stock
Price Break
10+
Rs. 18,886.15
19+
Rs. 17,825.13
29+
Rs. 17,612.92
39+
Rs. 17,400.72
49+
Rs. 17,188.52
74+
Rs. 16,976.31
99+
Rs. 15,915.29
199+
Rs. 15,703.09
249+
Rs. 15,490.88
499+
Rs. 15,278.68
999+
Rs. 14,854.27
Description
Description
|
Budget Flange-less Needle Roller: The flange-less design permits separation of the supplied inner ring and the outer bearing to facilitate ease of mounting. Benefits: Separable, ease of mounting. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 90mm
- Outside Diameter:
- 120mm
- Width:
- 30mm
Technical
Technical
| d | 90mm |
|---|---|
| D | 120mm |
| B | 30mm |
| Dynamic load C | 67100 N |
| Static load Co | 190000 N |
| Fatigue load limit Pu | 23600 N |
| Speed in grease | 2800 rpm |
| Speed in oil | 4000 rpm |
| E | 108mm |
| F | 100mm |
| r1r2 min | 1mm |
| S (axial disp) | 1mm |
| da | 107.2mm |
| db | 99.3mm |
| Da | 109mm |
| Db | 101mm |
| ra max | 1mm |
| Weight | 1050 g |
