SKU: NA6901-EU

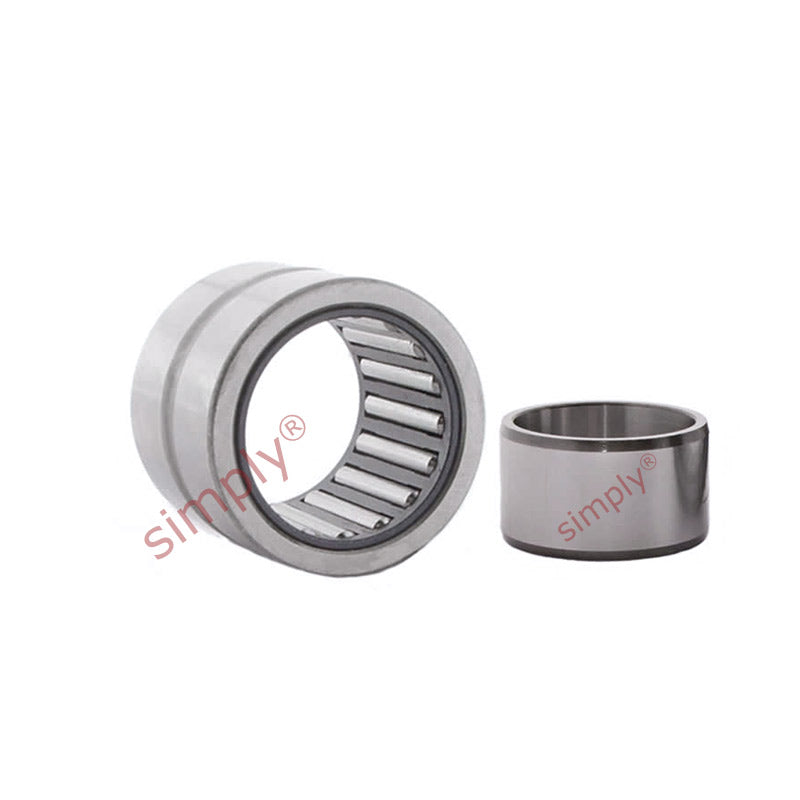

NA6901 Budget Needle Roller Bearing / Shaft Sleeve 12x24x22mm
NA6901 Budget Needle Roller Bearing / Shaft Sleeve 12x24x22mm
Regular price
Rs. 2,276.17
Regular price
Sale price
Rs. 2,276.17
Taxes included.
In stock
Price Break
10+
Rs. 2,025.79
19+
Rs. 1,911.98
29+
Rs. 1,889.22
39+
Rs. 1,866.46
49+
Rs. 1,843.70
74+
Rs. 1,820.94
99+
Rs. 1,707.13
199+
Rs. 1,684.37
249+
Rs. 1,661.60
499+
Rs. 1,638.84
999+
Rs. 1,593.32
Description
Description
|
Budget Needle Roller Bearings with Flanges: Constructed with flanges in the outer ring to assist in the centralisation of the needle bearing race, sizes up to 17mm have no lubrication hole, or annular groove around the outside, above this size an oil hole and annular groove is provided. Generally a single row bearing with the exceptions of some of the larger sizes. Benefits: Flanged to provide centralisation, compact and self contained and includes the inner ring. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 12mm
- Outside Diameter:
- 24mm
- Width:
- 22mm
Technical
Technical
| d | 12mm |
|---|---|
| D | 24mm |
| B | 22mm |
| Dynamic load C | 16100 N |
| Static load Co | 23200 N |
| Fatigue load limit Pu | 2900 N |
| Speed in grease | 16000 rpm |
| Speed in oil | 24000 rpm |
| F | 16mm |
| r1r2 | 0.3mm |
| S (axial disp) | 1mm |
| da min | 14mm |
| Da max | 22mm |
| ra max | 0.3mm |
