SKU: NA4912-MB

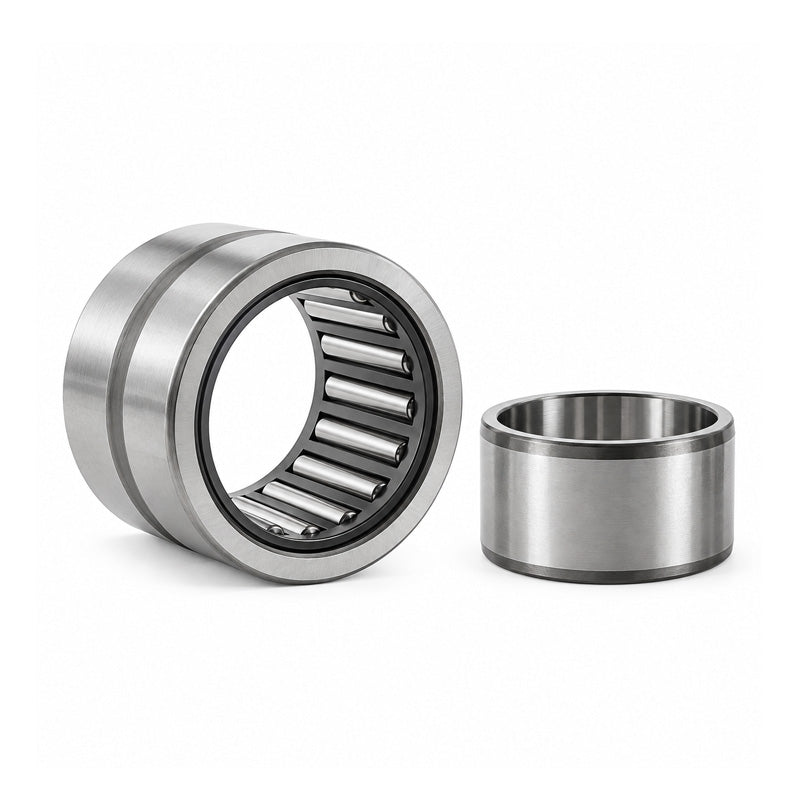

Major Brand NA4912 Needle Roller Bearing With Shaft Sleeve 60x85x25mm
Major Brand NA4912 Needle Roller Bearing With Shaft Sleeve 60x85x25mm
Regular price
Rs. 10,208.22
Regular price
Sale price
Rs. 10,208.22
Taxes included.
In stock
Price Break
10+
Rs. 9,085.32
19+
Rs. 8,574.90
29+
Rs. 8,472.82
39+
Rs. 8,370.74
49+
Rs. 8,268.66
74+
Rs. 8,166.58
99+
Rs. 7,656.17
199+
Rs. 7,554.08
249+
Rs. 7,452.00
499+
Rs. 7,349.92
999+
Rs. 7,145.75
Description
Description
|
Needle Roller Bearings with Flanges: Constructed with flanges in the outer ring to assist in the centralisation of the needle bearing race, sizes up to 17mm have no lubrication hole, or annular groove around the outside, above this size an oil hole and annular groove is provided. Generally a single row bearing with the exceptions of some of the larger sizes. Benefits: Flanged to provide centralisation, compact and self contained and includes the inner ring. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 60mm
- Outside Diameter:
- 85mm
- Width:
- 25mm
Technical
Technical
| d | 60mm |
|---|---|
| D | 85mm |
| B | 25mm |
| Dynamic load | 60500 N |
| Static load | 114000 N |
| Fatigue load limit Pu | 14600 N |
| Speed in grease | 4300 rpm |
| Speed in oil | 6000 rpm |
| F | 68mm |
| r1r2 | 1mm |
| S (axial disp) | 1.5mm |
| da min | 65mm |
| Da max | 80mm |
| ra max | 1mm |
