SKU: NA4902.2RS-MB

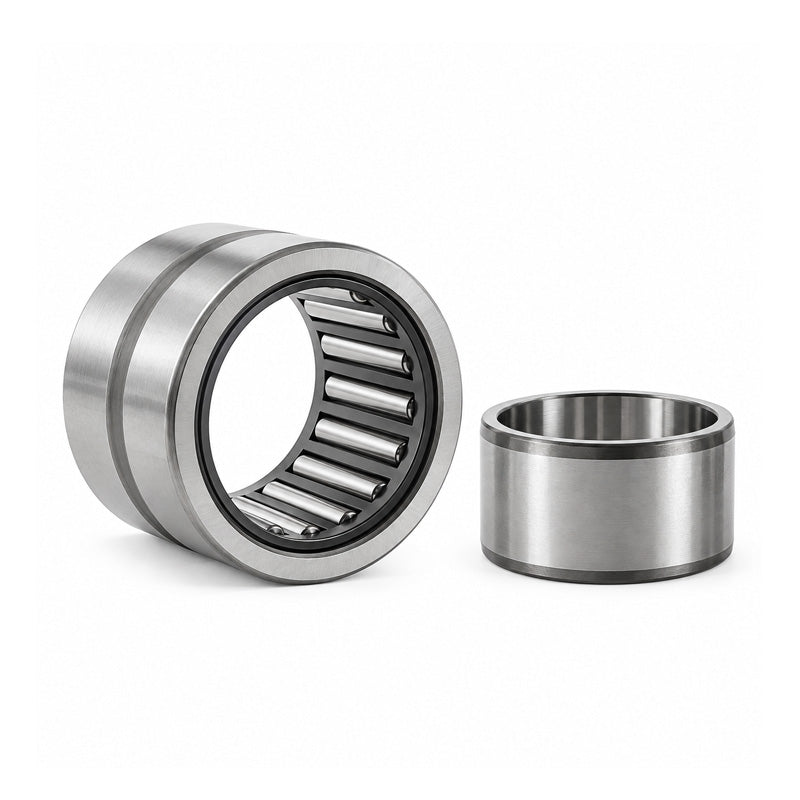

Major Brand NA49022RS Needle Roller Bearing With Shaft Sleeve and Two Rubber Seals 15x28x14mm
Major Brand NA49022RS Needle Roller Bearing With Shaft Sleeve and Two Rubber Seals 15x28x14mm
Regular price
Rs. 3,967.59
ex VAT
Regular price
Sale price
Rs. 3,967.59
ex VAT
In stock
Price Break
10+
Rs. 3,531.16
19+
Rs. 3,332.78
29+
Rs. 3,293.10
39+
Rs. 3,253.42
49+
Rs. 3,213.75
74+
Rs. 3,174.07
99+
Rs. 2,975.69
199+
Rs. 2,936.02
249+
Rs. 2,896.34
499+
Rs. 2,856.66
999+
Rs. 2,777.31
Couldn't load pickup availability
Description
Description
|
Needle Roller Bearings with Flanges: Constructed with flanges in the outer ring to assist in the centralisation of the needle bearing race, sizes up to 17mm have no lubrication hole, or annular groove around the outside, above this size an oil hole and annular groove is provided. Generally a single row bearing with the exceptions of some of the larger sizes. Benefits: Flanged to provide centralisation, compact and self contained and includes the inner ring. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 15mm
- Outside Diameter:
- 28mm
- Width:
- 14mm
Technical
Technical
| d | 15mm |
|---|---|
| D | 28mm |
| B | 14mm |
| C | 13mm |
| Dynamic load | 9130 N |
| Static load | 12000 N |
| Fatigue load limit Pu | 1400 N |
| Speed in grease | 9500 rpm |
| F | 20mm |
| r1r2 | 0.3mm |
| S (axial disp) | 0.5mm |
| da min | 17mm |
| Da max | 26mm |
| ra max | 0.3mm |
