SKU: NA4900-MB

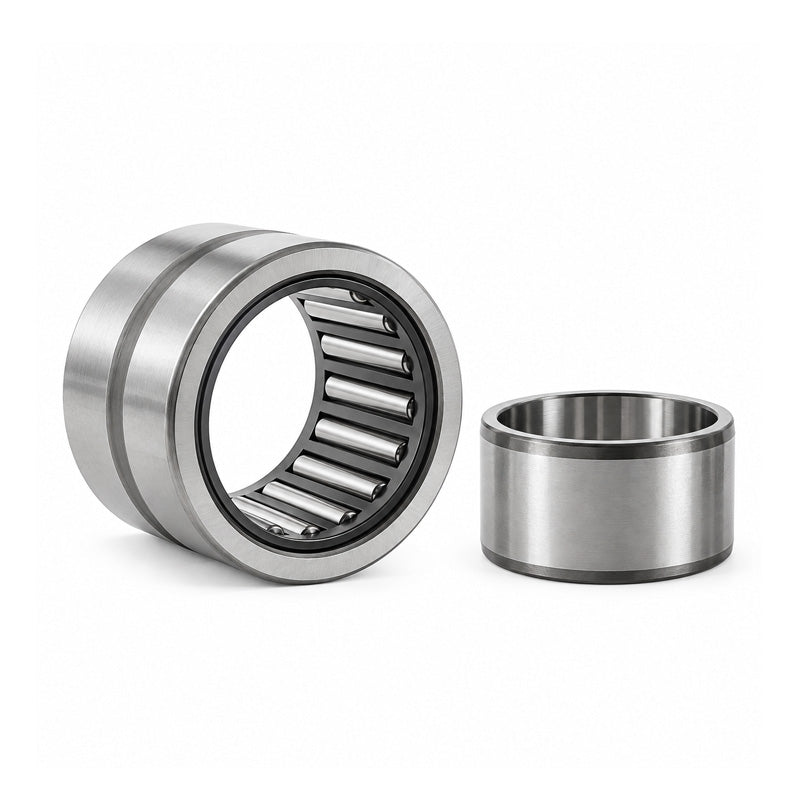

Major Brand NA4900 Needle Roller Bearing With Shaft Sleeve 10x22x13mm
Major Brand NA4900 Needle Roller Bearing With Shaft Sleeve 10x22x13mm
Regular price
Rs. 1,450.45
Regular price
Sale price
Rs. 1,450.45
Taxes included.
In stock
Price Break
10+
Rs. 1,290.90
19+
Rs. 1,218.38
29+
Rs. 1,203.87
39+
Rs. 1,189.37
49+
Rs. 1,174.86
74+
Rs. 1,160.36
99+
Rs. 1,087.84
199+
Rs. 1,073.33
249+
Rs. 1,058.83
499+
Rs. 1,044.32
999+
Rs. 1,015.32
Description
Description
|
Needle Roller Bearings with Flanges: Constructed with flanges in the outer ring to assist in the centralisation of the needle bearing race, sizes up to 17mm have no lubrication hole, or annular groove around the outside, above this size an oil hole and annular groove is provided. Generally a single row bearing with the exceptions of some of the larger sizes. Benefits: Flanged to provide centralisation, compact and self contained and includes the inner ring. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 10mm
- Outside Diameter:
- 22mm
- Width:
- 13mm

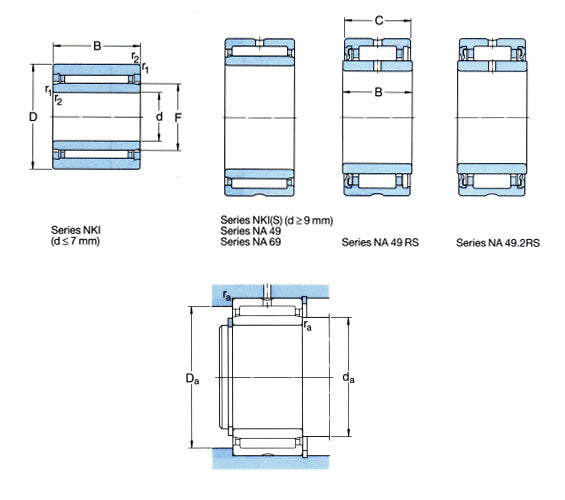

Technical
Technical
| d | 10mm |
|---|---|
| D | 22mm |
| B | 13mm |
| Dynamic load | 8800 N |
| Static load | 10400 N |
| Fatigue load limit Pu | 1250 N |
| Speed in grease | 17000 rpm |
| Speed in oil | 26000 rpm |
| F | 14mm |
| r1r2 | 0.3mm |
| S (axial disp) | 0.5mm |
| da min | 12mm |
| Da max | 20mm |
| ra max | 0.3mm |
