SKU: NA49/32-MB

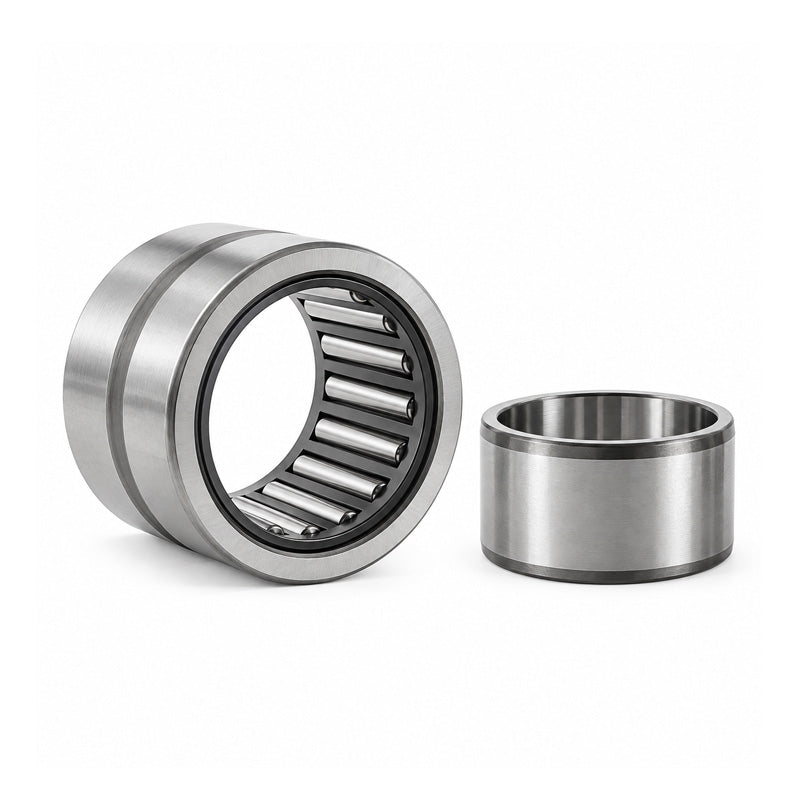

Major Brand NA49/32 Needle Roller Bearing With Shaft Sleeve 32x52x20mm
Major Brand NA49/32 Needle Roller Bearing With Shaft Sleeve 32x52x20mm
Regular price
Rs. 2,512.51
ex VAT
Regular price
Sale price
Rs. 2,512.51
ex VAT
In stock
Price Break
10+
Rs. 2,236.13
19+
Rs. 2,110.51
29+
Rs. 2,085.38
39+
Rs. 2,060.26
49+
Rs. 2,035.13
74+
Rs. 2,010.01
99+
Rs. 1,884.38
199+
Rs. 1,859.26
249+
Rs. 1,834.13
499+
Rs. 1,809.01
999+
Rs. 1,758.76
Couldn't load pickup availability
Description
Description
|
Needle Roller Bearings with Flanges: Constructed with flanges in the outer ring to assist in the centralisation of the needle bearing race, sizes up to 17mm have no lubrication hole, or annular groove around the outside, above this size an oil hole and annular groove is provided. Generally a single row bearing with the exceptions of some of the larger sizes. Benefits: Flanged to provide centralisation, compact and self contained and includes the inner ring. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 32mm
- Outside Diameter:
- 52mm
- Width:
- 20mm
Technical
Technical
| d | 32mm |
|---|---|
| D | 52mm |
| B | 20mm |
| Dynamic load | 30800 N |
| Static load | 51000 N |
| Fatigue load limit Pu | 6550 N |
| Speed in grease | 7000 rpm |
| Speed in oil | 10000 rpm |
| F | 40mm |
| r1r2 | 0.6mm |
| S (axial disp) | 0.8mm |
| da min | 36mm |
| Da max | 48mm |
| ra max | 0.6mm |
