SKU: NA49/28R-NTN

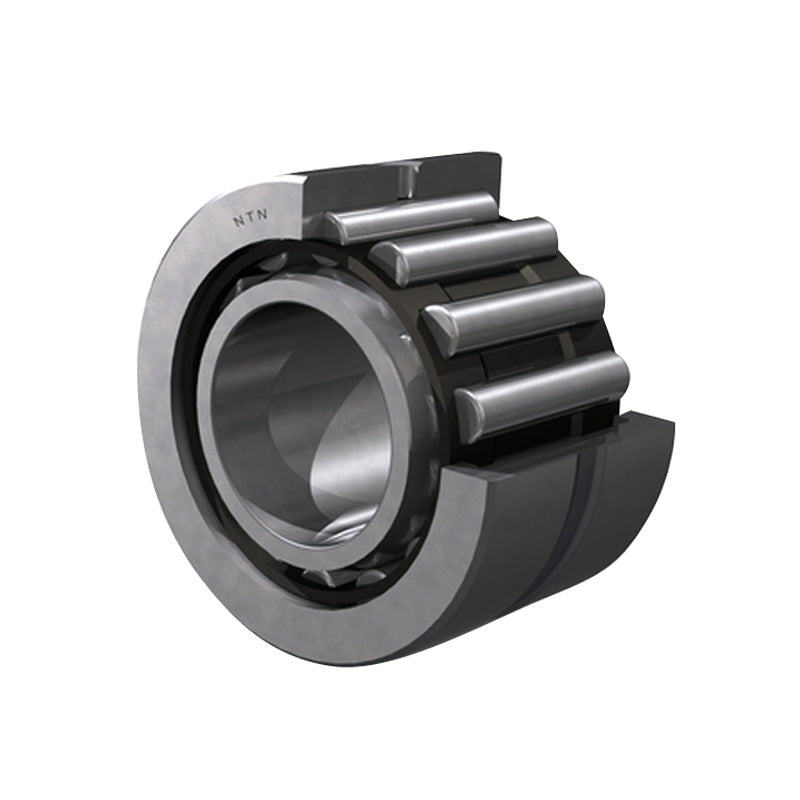

NTN NA49/28R Machined Needle Roller Bearing with Shaft Sleeve 28x45x17mm
NTN NA49/28R Machined Needle Roller Bearing with Shaft Sleeve 28x45x17mm
Regular price
Rs. 2,598.78
Regular price
Sale price
Rs. 2,598.78
Taxes included.
In stock
Price Break
10+
Rs. 2,312.91
19+
Rs. 2,182.98
29+
Rs. 2,156.99
39+
Rs. 2,131.00
49+
Rs. 2,105.01
74+
Rs. 2,079.02
99+
Rs. 1,949.09
199+
Rs. 1,923.10
249+
Rs. 1,897.11
499+
Rs. 1,871.12
999+
Rs. 1,819.15
Description
Description
NTN Needle Roller Bearings: These bearings deliver exceptional performance in compact applications, offering high load capacity, low friction, and long service life. Precision-engineered with high-quality needle rollers and advanced cage designs, these bearings ensure smooth, efficient operation even under heavy radial loads. Ideal for automotive transmissions, industrial machinery, power tools, and robotic systems, NTN bearings are trusted worldwide for their durability, accuracy, and consistent reliability in demanding environments.
Benefits: High performance, economical, rigid machined outer ring
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 28mm
- Outside Diameter:
- 45mm
- Width:
- 17mm
Technical
Technical
| d - Inside diameter | 28mm |
|---|---|
| D - Outside diameter | 45mm |
| C - Width of bearing, drawn cup or outer ring | 17mm |
| F - Under roller diameter | 32mm |
| rs - Minimum fillet radius | 0.3mm |
| s - Max axial offset | 0.8mm |
| Lubrication hole on outer ring? | Yes |
| k - Lubrication hole diameter | 2.5mm |
| Lubrication hole on innr ring? | No |
| Radial clearance class | CN |
| Precision class | P0 |
| Cr - Dynamic load rating | 24.8 kN |
| C0r - Static load rating | 33.5 kN |
| N - Grease lubrication limit speed | 8500 tr/min |
| N - Oil lubrication limit speed | 13000 tr/min |
| Tmin - Minimum operating temperature | -20 Deg C |
| Tmax - Maximum operating temperature | +120 Deg C |
| da min - Inner ring minimum shoulder diameter | 30mm |
| Da max - Outer ring maximum shoulder diameter | 43mm |
| ras max - Maximum shaft & housing fillet radius | 0.3mm |
