SKU: NA2201.2RS-SKF

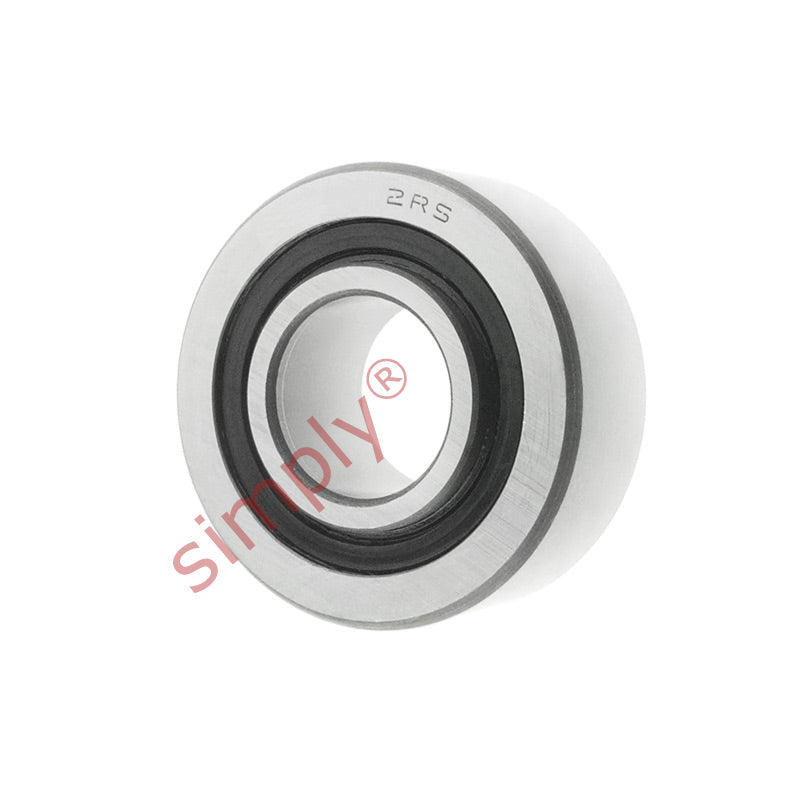

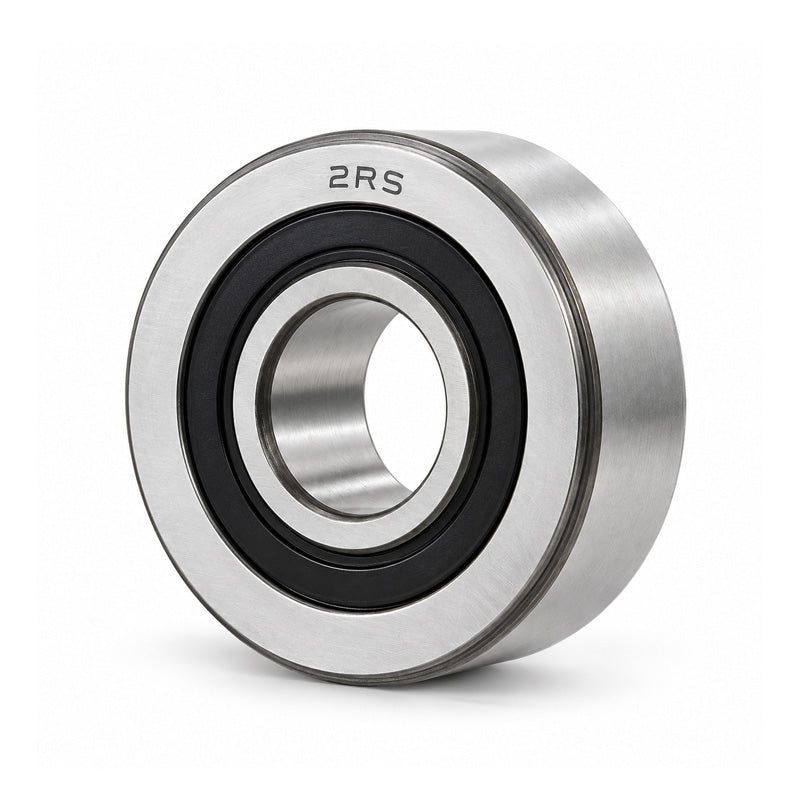

SKF NA22012RS Support Roller Without Axial Guidance With Inner Sleeve 12x32x13.8mm
SKF NA22012RS Support Roller Without Axial Guidance With Inner Sleeve 12x32x13.8mm
Regular price
Rs. 9,997.21
ex VAT
Regular price
Sale price
Rs. 9,997.21
ex VAT
In stock
Price Break
5+
Rs. 9,897.24
10+
Rs. 9,497.35
20+
Rs. 9,297.41
50+
Rs. 8,997.49
100+
Rs. 8,797.54
500+
Rs. 8,297.68
1000+
Rs. 6,998.05
Couldn't load pickup availability
Description
Description
Support Rollers without Axial Guidance : Designed for applications where the associated components can be designed to to provide the axial guidance. The support rollers are supplied with inner rings and are intended for arrangements where the pin or shaft can be hardened and ground. |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 12mm
- Outside Diameter:
- 32mm
- Width:
- 13.8mm
Technical
Technical
| d | 12mm |
|---|---|
| D | 32mm |
| C | 13.8mm |
| B | 14mm |
| D1 | 22mm |
| F | 16mm |
| r min | 0.6mm |
| r1r2 min | 0.3mm |
| Speed rating | 4700 rpm |
| Dynamic load | 6930 N |
| Basic static load | 8150 N |
| Fatigue load limit Pu | 965 N |
| Max radial dynamic force | 11600 N |
| Max radial static force | 16600 N |
| Weight | 67 g |
