SKU: N319-EU

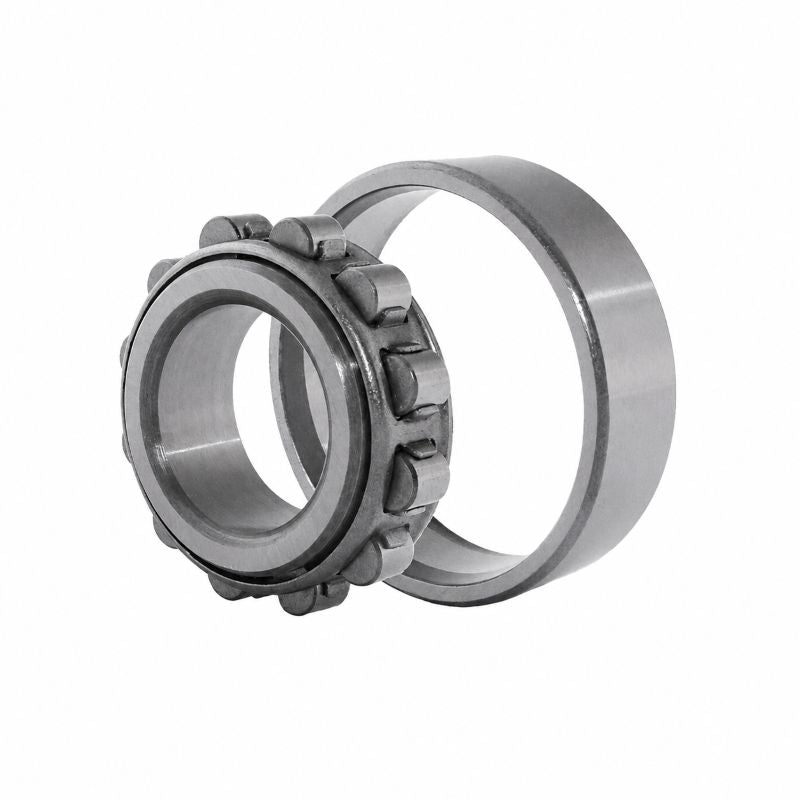

N319 Budget Single Row Cylindrical Roller Bearing 95x200x45mm
N319 Budget Single Row Cylindrical Roller Bearing 95x200x45mm
Regular price
Rs. 34,166.32
ex VAT
Regular price
Sale price
Rs. 34,166.32
ex VAT
In stock
Price Break
10+
Rs. 30,408.02
19+
Rs. 28,699.71
29+
Rs. 28,358.05
39+
Rs. 28,016.38
49+
Rs. 27,674.72
74+
Rs. 27,333.06
99+
Rs. 25,624.74
199+
Rs. 25,283.08
249+
Rs. 24,941.41
499+
Rs. 24,599.75
999+
Rs. 23,916.42
Couldn't load pickup availability
Description
Description
|
N Series Single Row Cylindrical Roller Bearings: The inner ring of this type has two integral flanges around which the rollers are assembled, the outer raceway has no flanges and is removable allowing ease of assembly and axial movements in either direction. Benefits: Axial location, ease of assembly and fitting |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 95mm
- Outside Diameter:
- 200mm
- Width:
- 45mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 95mm |
|---|---|
| D | 200mm |
| B | 45mm |
| Dynamic load C | 390 kN |
| Static load Co | 390 kN |
| Fatigue load limit Pu | 46.5 kN |
| Reference speed | 3600 rpm |
| Limiting speed | 4300 rpm |
| Weight | 6.2 kg |
| Cage options | M |
| d1 | 132mm |
| F, E | 177.5mm |
| r1r2 min | 3mm |
| r3r4 min | 3mm |
| s | 2.9mm |
| da min | 109mm |
| da max | 174mm |
| db min | 181mm |
| Da max | 186mm |
| ra max | 2.5mm |
| rb max | 2.5mm |
| kr | 0.15 |
