SKU: N313-E-TVP2

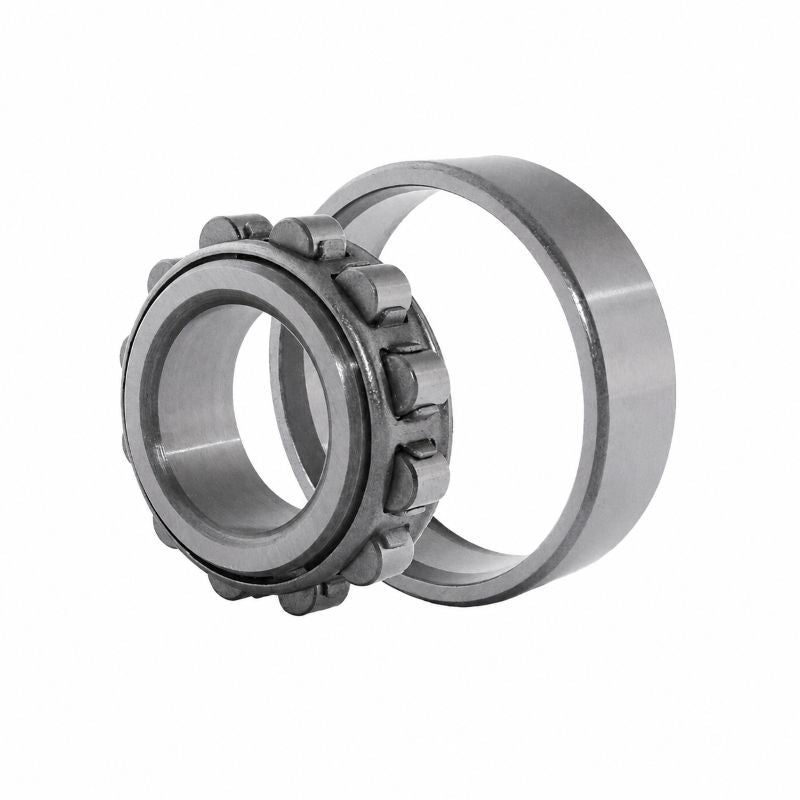

N313-E-TVP2 X-life Cylindrical Roller Bearing with Cage 65x140x33mm
N313-E-TVP2 X-life Cylindrical Roller Bearing with Cage 65x140x33mm
Regular price
Rs. 19,035.11
Regular price
Sale price
Rs. 19,035.11
Taxes included.
In stock
Price Break
10+
Rs. 16,941.25
19+
Rs. 15,989.49
29+
Rs. 15,799.14
39+
Rs. 15,608.79
49+
Rs. 15,418.44
74+
Rs. 15,228.09
99+
Rs. 14,276.33
199+
Rs. 14,085.98
249+
Rs. 13,895.63
499+
Rs. 13,705.28
999+
Rs. 13,324.58
Description
Description
|
N Series Single Row Cylindrical Roller Bearings: The inner ring of this type has two integral flanges around which the rollers are assembled, the outer raceway has no flanges and is removable allowing ease of assembly and axial movements in either direction. Benefits: Axial location, ease of assembly and fitting |
- Brand / Quality:
- FAG - High Quality
- Inside Diameter:
- 65mm
- Outside Diameter:
- 140mm
- Width:
- 33mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 65 |
|---|---|
| D | 140 |
| B | 33 |
| r min | 2.1 |
| r1 min | 2.1 |
| s | 1.4 |
| E | 124.5 |
| F | 82.5 |
| d1 | 90.5 |
| da min | 77 |
| Da max | 128 |
| Db min | 126 |
| Dc max | 123 |
| ra max | 2.1 |
| ra1 max | 2.1 |
| Dynamic load | 214000 N |
| Static load | 191000 N |
| Fatigue limit load | 32000 N |
| Limiting speed | 4800 rpm |
| Reference speed | 4900 rpm |
| Weight | 2.28 kg |
