SKU: MUCP204FD
Asahi MUCP204FD Stainless Steel Two Bolt Pillow / Plummer Block Housing with 20mm Bore Stainless Insert with Food Safe Grease
Asahi MUCP204FD Stainless Steel Two Bolt Pillow / Plummer Block Housing with 20mm Bore Stainless Insert with Food Safe Grease
Regular price
Rs. 10,753.58
Regular price
Sale price
Rs. 10,753.58
Taxes included.
In stock
Price Break
10+
Rs. 9,570.69
19+
Rs. 9,033.01
29+
Rs. 8,925.47
39+
Rs. 8,817.94
49+
Rs. 8,710.40
74+
Rs. 8,602.86
99+
Rs. 8,065.19
199+
Rs. 7,957.65
249+
Rs. 7,850.11
499+
Rs. 7,742.58
999+
Rs. 7,527.51
Description
Description
|
UCP or NP Series Stainless Steel Plummer / Pillow Housings: Supplied with a fully sealed stainless steel bearing insert fitted in the stainless steel housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, food safe and approved, exceptionally strong and durable Note: These bearings will eventually corrode in a marine environment and it is recommended to completely cover with grease or similar protection where practical. Due to the material requirements of these bearings to have a hard-wearing construction, they will be made of a harder form of Stainless Steel, such as 440 or similar, which will be attracted by magnets. Quotations for non-magnetic versions are available upon request. |
Note: The insert bearing supplied with this housing is prefilled with food compatible grease.
- Brand / Quality:
- Asahi - High Quality
- Inside Diameter:
- 20mm
- Bolt Hole Centres:
- 95mm

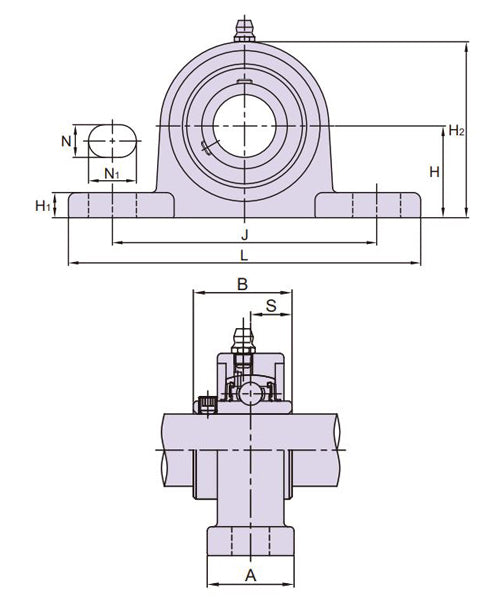

Technical
Technical
| d | 20mm |
|---|---|
| H | 33.3mm |
| L | 127mm |
| A | 30mm |
| J | 95mm |
| N | 13mm |
| N1 | 19mm |
| H1 | 11mm |
| H2 | 65mm |
| B | 31mm |
| S | 12.7mm |
| Bolt Size | M10 |
| Basic Dynamic Load Rating | 10.9 kN |
| Basic Static Load Rating | 5.3 kN |
