SKU: MUCNFL208-SNR

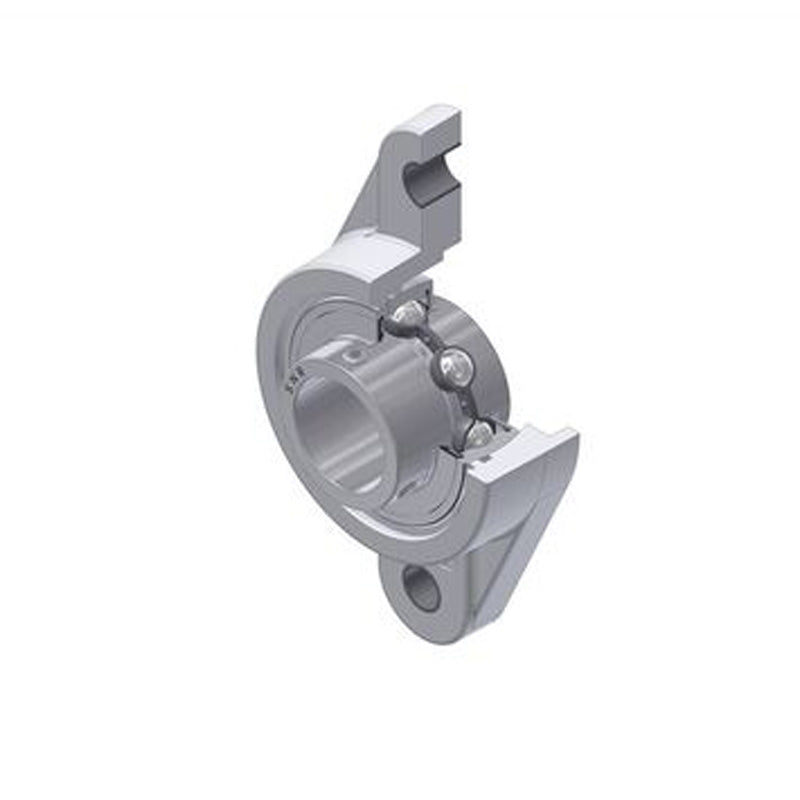

SNR MUCNFL208 Metric Thermoplastic Two Bolt Oval Flanged Bracket Housing Unit with 40mm Bore Insert - Allow 2-3 Days

SNR MUCNFL208 Metric Thermoplastic Two Bolt Oval Flanged Bracket Housing Unit with 40mm Bore Insert - Allow 2-3 Days
Regular price Rs. 14,187.04
Regular price Sale price Rs. 14,187.04
Sale Sold out
Taxes included.

In stock

Price Break
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
Bore 40mm
A - Housing height 37.5mm
A1 - Housing foot height / flange height 20mm
A2 - Total height from mounting surface 51.7mm
B - Width of Inner Ring 49.2mm
d - Shaft diameter 40mm
e - Distance mounting surface to bearing centre 21.5mm
G - Grease fitting 1/4-28 inch
H - Housing length, width or diameter 175mm
J - Mounting holes distance 144mm
L - Housing width / diameter 100mm
N - Mounting hole dimension 14mm
S - Distance front side/bearing centre 19mm
C - Dynamic load rating 14.3 kN
C0 - Static load rating 14.3 kN
Operating temperature min. -20 Deg C
Operating temperature max. 100 Deg C
Mass 0.87kg
Recommended tightening torque for set screw 8.3 Nm
