SKU: MUCNFL204-SNR

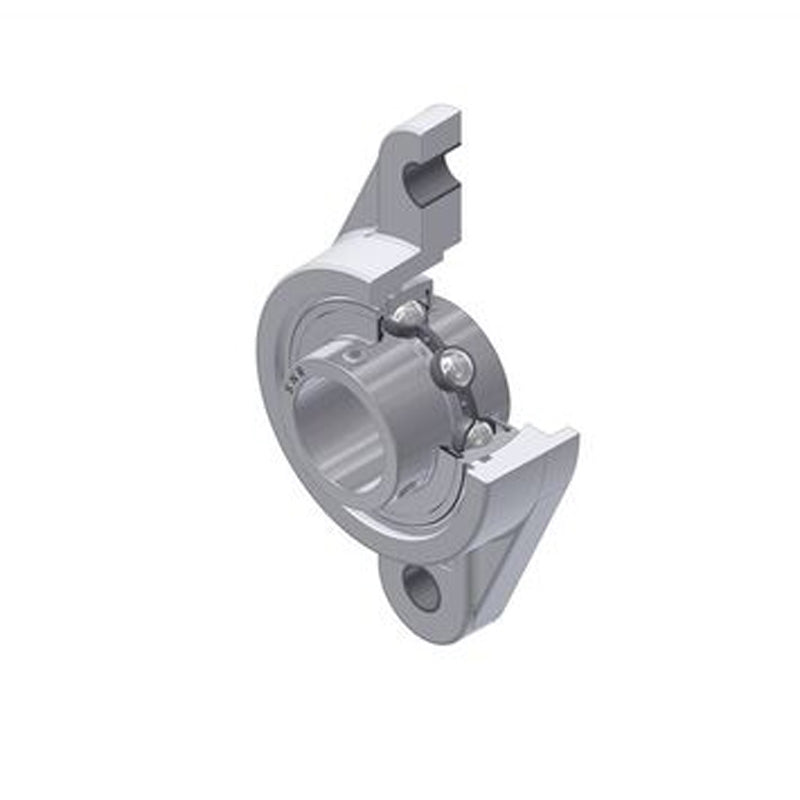

SNR MUCNFL204 Metric Thermoplastic Two Bolt Oval Flanged Bracket Housing Unit with 20mm Bore Insert - Allow 2-3 Days
SNR MUCNFL204 Metric Thermoplastic Two Bolt Oval Flanged Bracket Housing Unit with 20mm Bore Insert - Allow 2-3 Days
Regular price
Rs. 7,093.52
Regular price
Sale price
Rs. 7,093.52
Taxes included.
In stock
Price Break
5+
Rs. 7,022.58
10+
Rs. 6,738.84
20+
Rs. 6,596.97
50+
Rs. 6,384.17
100+
Rs. 6,242.30
500+
Rs. 5,887.62
1000+
Rs. 4,965.46
Description
Description
SNR MUCNFL200 Two Bolt Oval Thermoplastic Housing Unit: This housing is designed for durability in demanding environments. With a sturdy thermoplastic housing and a stainless steel insert ball bearing secured by socket set screws, this unit ensures reliable performance. Its innovative seal with slinger protects against contaminants, while the food-grade grease makes it ideal for food processing applications. Experience exceptional strength and reliability with this versatile housing unit.
Benefits: Durability, food-safe design, easy maintenance
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 20mm
- Temperature Range:
- -20 to 100 deg C
- Style:
- MUCNFL
- Colour:
- White
- Bolt Hole Centres:
- 90.0mm
Technical
Technical

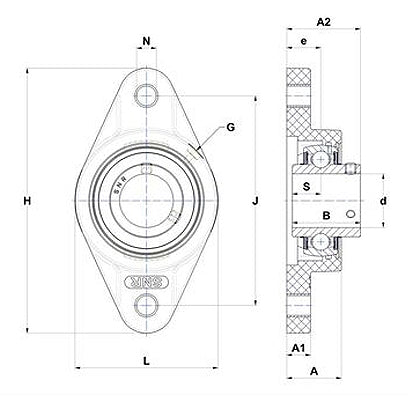

| Bore | 20mm |
|---|---|
| A - Housing height | 26.5mm |
| A1 - Housing foot height / flange height | 11.4mm |
| A2 - Total height from mounting surface | 33.7mm |
| B - Width of Inner Ring | 31mm |
| d - Shaft diameter | 20mm |
| e - Distance mounting surface to bearing centre | 15.4mm |
| G - Grease fitting | 1/4-28 inch |
| H - Housing length, width or diameter | 113mm |
| J - Mounting holes distance | 90mm |
| L - Housing width / diameter | 64.8mm |
| N - Mounting hole dimension | 11mm |
| S - Distance front side/bearing centre | 12.7mm |
| C - Dynamic load rating | 10.9 kN |
| C0 - Static load rating | 5.3 kN |
| Operating temperature min. | -20 Deg C |
| Operating temperature max. | 100 Deg C |
| Mass | 0.25kg |
| Recommended tightening torque for set screw | 3.9 Nm |
