SKU: MUCFPL205-16-SNR

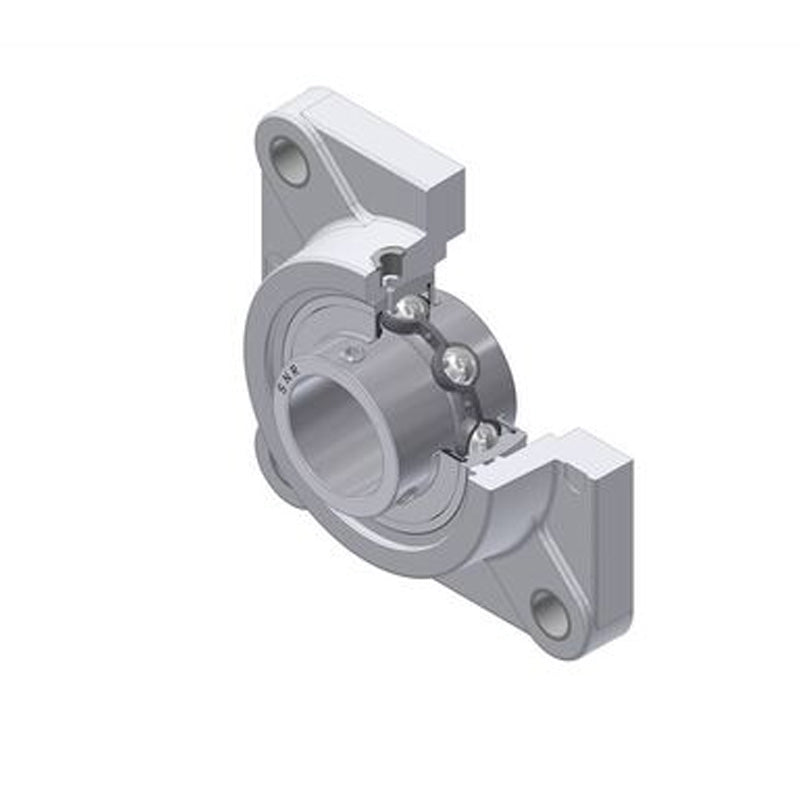

SNR MUCFPL205-16 Imperial Thermoplastic Four Bolt Square Flanged Bracket Housing Unit with 1 inch Bore Insert - Allow 2-3 Days
SNR MUCFPL205-16 Imperial Thermoplastic Four Bolt Square Flanged Bracket Housing Unit with 1 inch Bore Insert - Allow 2-3 Days
Regular price
Rs. 8,506.85
Regular price
Sale price
Rs. 8,506.85
Taxes included.
In stock
Price Break
5+
Rs. 8,421.78
10+
Rs. 8,081.51
20+
Rs. 7,911.37
50+
Rs. 7,656.17
100+
Rs. 7,486.03
500+
Rs. 7,060.69
1000+
Rs. 5,954.80
Description
Description
SNR MUCFPL200 Four Bolt Square Thermoplastic Housing Unit: This housing is designed for durability in demanding environments. With a sturdy thermoplastic housing and a stainless steel insert ball bearing secured by socket set screws, this unit ensures reliable performance. Its innovative seal with slinger protects against contaminants, while the food-grade grease makes it ideal for food processing applications. Experience exceptional strength and reliability with this versatile housing unit.
Benefits: Durability, food-safe design, easy maintenance
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 25.4mm = 1 inch
- Temperature Range:
- -20 to 100 deg C
- Style:
- MUCFPL
- Colour:
- White
- Bolt Hole Centres:
- 70.0mm
Technical
Technical
| Bore | 1 inch |
|---|---|
| A - Housing height | 28mm |
| A1 - Housing foot height / flange height | 14.3mm |
| A2 - Total height from mounting surface | 36.8mm |
| B - Width of Inner Ring | 34.1mm |
| d - Shaft diameter | 25.4mm |
| e - Distance mounting surface to bearing centre | 17mm |
| G - Grease fitting | 1/4-28 inch |
| J - Mounting holes distance | 70mm |
| L - Housing width / diameter | 95mm |
| N - Mounting hole dimension | 11mm |
| S - Distance front side/bearing centre | 14.3mm |
| C - Dynamic load rating | 11.9 kN |
| C0 - Static load rating | 6.3 kN |
| Operating temperature min. | -20 Deg C |
| Operating temperature max. | 100 Deg C |
| Mass | 0.351kg |
| Recommended tightening torque for set screw | 3.9 Nm |
