SKU: MTO-265X

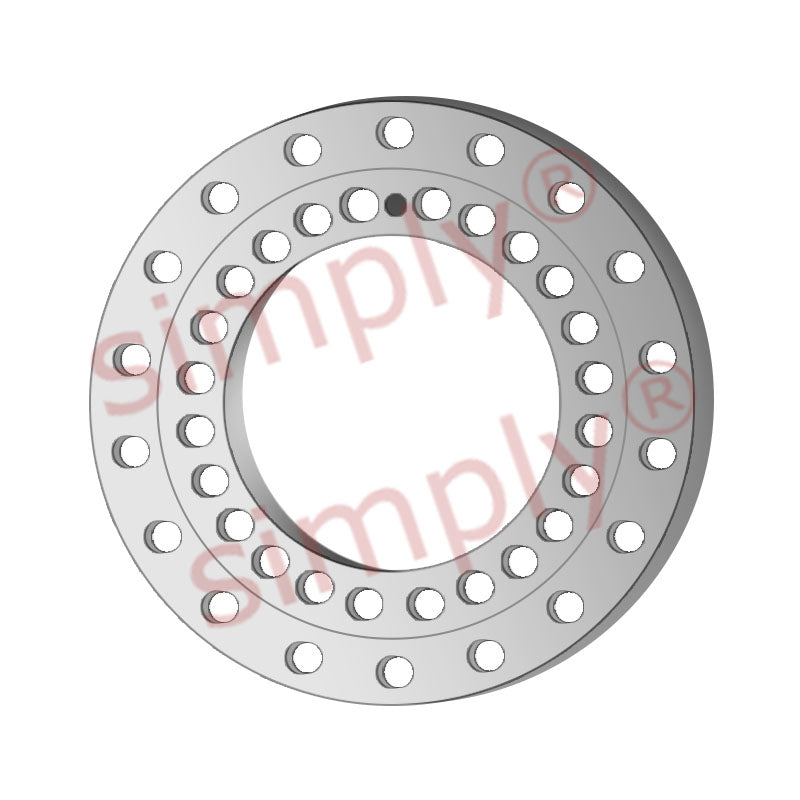

Silverthin MTO265X No Gear Slewing Ring 10.433x17.086x1.968 inch
Silverthin MTO265X No Gear Slewing Ring 10.433x17.086x1.968 inch
Regular price
Rs. 29,006.16
ex VAT
Regular price
Sale price
Rs. 29,006.16
ex VAT
Equivalent to: STO-265X
In stock
Price Break
10+
Rs. 25,815.48
19+
Rs. 24,365.17
29+
Rs. 24,075.11
39+
Rs. 23,785.05
49+
Rs. 23,494.99
74+
Rs. 23,204.93
99+
Rs. 21,754.62
199+
Rs. 21,464.56
249+
Rs. 21,174.50
499+
Rs. 20,884.44
999+
Rs. 20,304.31
Couldn't load pickup availability
Description
Description
|
Silverthin Kaydon No Gear Slewing Ring: This slewing ring is a non-gear four-point contact bearing with a rectangular cross-section. This slewing ring has clearance. |
Equivalent: STO-265X
- Brand / Quality:
- Silverthin - High Quality
- Inside Diameter:
- 264.99mm = 10.433 inch
- Outside Diameter:
- 433.98mm = 17.086 inch
- Width:
- 49.98mm = 1.968 inch

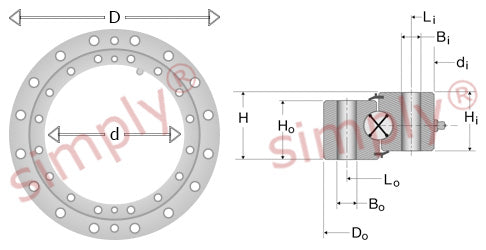

Technical
Technical
| (di) Inner Diameter | 10.433 inch |
|---|---|
| (Do) Outer Diameter | 17.086 inch |
| (H) Full Width | 1.968 inch |
| (Hii/Ho) Inner/Outer Ring Width | 1.732 inch |
| (Li) Inner Ring | 11.614 inch |
| (ni) No of Inner Ring Holes | 24 holes |
| (Bi) | 0.594 inch |
| (Lo) Outer Ring | 15.354 inch |
| (no) No of Outer Ring Holes | 18 holes |
| (B) | 0.594 inch |
| (ft - lbs) Moment Rating | 48670 inch |
| (kg) Weight | 27.5kg |
