SKU: MST80-RHP

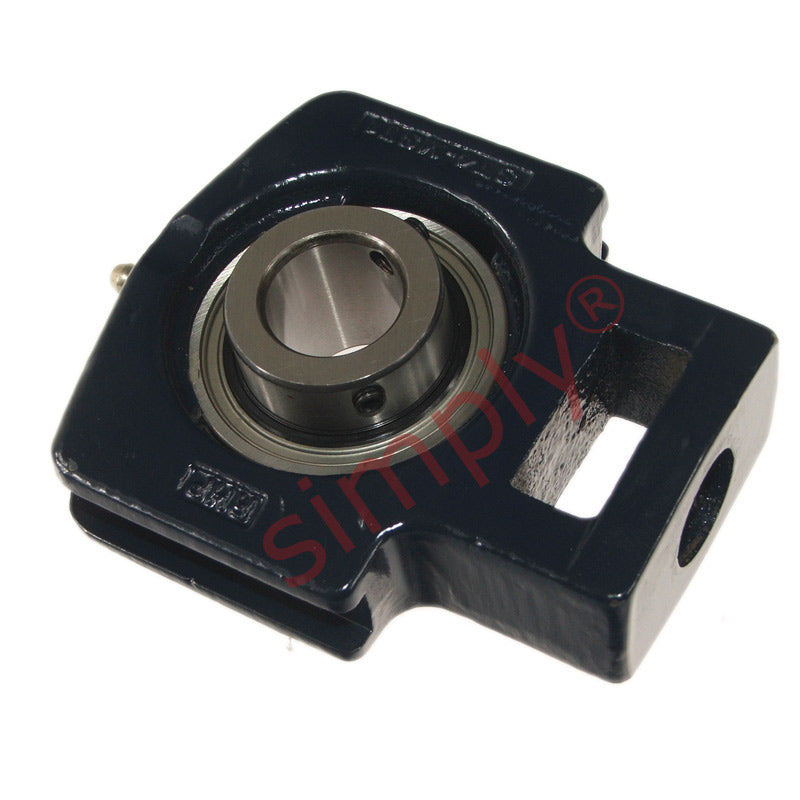

RHP MST80 Cast Iron Take Up Unit and 80mm Bore Insert
RHP MST80 Cast Iron Take Up Unit and 80mm Bore Insert
Regular price
Rs. 73,718.87
ex VAT
Regular price
Sale price
Rs. 73,718.87
ex VAT
In stock
Price Break
10+
Rs. 65,609.79
19+
Rs. 61,923.85
29+
Rs. 61,186.66
39+
Rs. 60,449.47
49+
Rs. 59,712.28
74+
Rs. 58,975.10
99+
Rs. 55,289.15
199+
Rs. 54,551.96
249+
Rs. 53,814.78
499+
Rs. 53,077.59
999+
Rs. 51,603.21
Couldn't load pickup availability
Description
Description
|
RHP MST Series Cast Iron Take Up Housing Units: Take up type cast iron bearing unit supplied with a sealed heavy duty full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 80mm
- Style:
- MST
Technical
Technical
| Bore | 80mm |
|---|---|
| L | 260.5mm |
| L1 | 162mm |
| L2 | 28.5mm |
| L3 | 38mm |
| L4 | 140mm |
| L5 | 90.5mm |
| H | 198.5mm |
| H1 | 124mm |
| H2 | 73mm |
| H3 | 173mm |
| N | 47.5mm |
| A | 79.5mm |
| A1 | 68.5mm |
| A2 | 46.05mm |
| B | 85.72mm |
| B5 | -mm |
| s | 34.18mm |
| d1 | 106.02mm |
| d4 | -mm |
| Dynamic load | 83000 N |
| Static load | 64000 N |
| Rec max speed | 2000 rpm |
| Weight | 13.7 kg |
| Insert | <a href="advanced_search_result.php?keywords=1085-80G+insonly">1085-80G Click Here</a> |
| Casting group | 11 |
| Grease nipple thread | 1/4 UNF, 1/4mm x 28 TPI |
