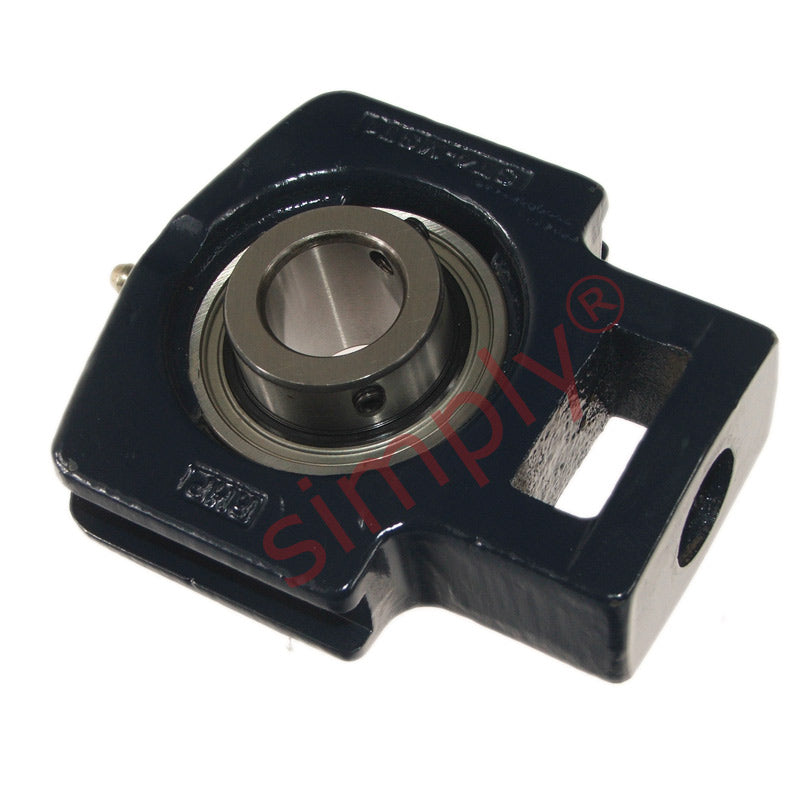

• RHP MST3-7/16 Cast Iron Take Up Unit and 3-7/16 inch Bore Insert
1 1

SKU: MST3.7/16-RHP

RHP MST3-7/16 Cast Iron Take Up Unit and 3-7/16 inch Bore Insert

RHP MST3-7/16 Cast Iron Take Up Unit and 3-7/16 inch Bore Insert
Rs. 118,583.78
Rs. 118,583.78
Sale Sold out
Taxes included.

In stock

Price Break
10+ Rs. 105,539.56
19+ Rs. 99,610.38
29+ Rs. 98,424.54
39+ Rs. 97,238.70
49+ Rs. 96,052.86
74+ Rs. 94,867.02
99+ Rs. 88,937.84
199+ Rs. 87,752.00
249+ Rs. 86,566.16
499+ Rs. 85,380.32
999+ Rs. 83,008.65
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

RHP MST Series Cast Iron Take Up Housing Units: Take up type cast iron bearing unit supplied with a sealed heavy duty full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, full width heavy duty insert

Brand / Quality:
RHP - High Quality
Inside Diameter:
87.31mm = 3.437 (3-7/16) inch
Style:
MST

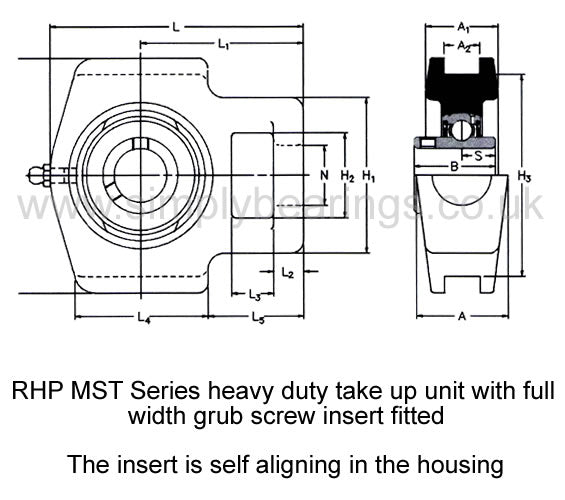

Technical
Bore 3-7/16 inch
L 10.63 inch
L1 6.496 inch
L2 1.122 inch
L3 1.496 inch
L4 6.004 inch
L5 3.543 inch
H 8.504 inch
H1 5 inch
H2 2.874 inch
H3 7.5 inch
N 1.87 inch
A 3.13 inch
A1 2.697 inch
A2 1.813 inch
B 3.781 inch
B5 - inch
s 1.564 inch
d1 4.396 inch
d4 - inch
Dynamic load 96000 N
Static load 71500 N
Rec max speed 1900 rpm
Weight 16.8 kg
Insert <a href="advanced_search_result.php?keywords=1090-3-7/16G+insonly">1090-3-7/16G Click Here</a>
Casting group 12
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
